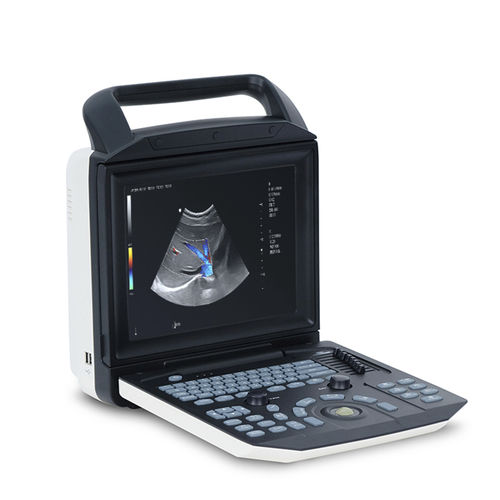

Portable veterinary ultrasound system YSB-M5 VET

multipurposefor small animalsfor large animals

Ergonomic Design Light-weight 7.5kg 12" Medical LCD Monitor with 90 degrees rotation 2 Preposed USB Ports Built-in Battery 2 Activated Probe Connectors 2 Probe Holders Backlit Keyboard Customized Trolley Features 2D, CFM, M, PW, CW, CMM, DPDl, Biopsy function THI, SRI, SCI, TSI, FCI , EFov, HR flow, B-steer Support local and global amplification Support PW auto trace and auto calculation Preposed USB ports, supporting multi-data transmission Dual Live and Multi-synchronization technologies uSeed Platform YSB-M5 facilitates accurate diagnosis based on uSeed metadata beamforming imaging technology platform. This brand-new platform is developed by CPU + GPU heterogeneous computing technology. The image in uSeed platform are saved as matadata for postprocessing. Technologies Pulse Inverse Harmonic Imaging PIHI PIHI reduces the distortion generated by the fundamental wave, and greatly improve the signal-to-noise ratio. Speckle Reduction Imaging SRI technology significantly reduces the unwanted speckle,provides enhanced tissue boundary and tissue echo for confident clinical diagnosis. Spatial Compound Imaging SCI provides better contrast resolution, reduces the speckle noise and smoothes the imaging of homogeneous tissue. Applications YSB-M5 has excellent performance and different applications according to user's demands: Felidae, Canine, Ovine, Equine, Bovine, Swine, User-defined Dedicated software package: Comprehensive Measurement Package, Vet-specific Presets, Vet-specific Comments, Vet-specific Body Marks.
