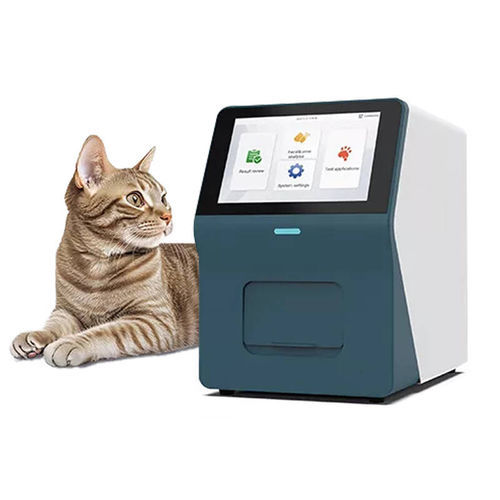

Veterinary cell morphology analyzer YSTE-MVA60

whole bloodurinefeces

Overview
Automatic veterinary morphological analyzer for morphological screening of blood, feces and urine. Model: YSTE-MVA60.

Specifications

• Sample type: Anticoagulant whole blood (EDTA), feces, urine
• Sample volume: 30µL (blood), 200µL (feces), 400µL (urine)
• Reagent card: Single-use
• Detection time: Approx. 8 minutes
• Operating temperature: 5–35°C
• Relative humidity: 25%–85%
• Atmospheric pressure: 33.64–101.3 kPa (altitude ≤ 6000 m)
• Power supply: AC 220V, 50Hz
• Communication: Bluetooth, WiFi
• Interfaces: RJ45, USB ×2, RS-232
• Dimensions (W×D×H): 226.5 × 343.5 × 329.5 mm
• Weight: 12.5 kg

Blood test items

• Red cell panel: RBC, RBC#, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, RET#, RET%, MCVr, RDWr-CV
• White cell panel: WBC, WBC#, NEU#, LYM#, MON#, EOS#, BAS#, NEU%, LYM%, MON%, EOS%, BAS%
• Platelet panel: PLT, PLT#, MPV, PDW-SD, PCT, LPLT#, P-LCR

Feces test items

• Parasitic ova: Ascaris ova, Hookworm ova, Tapeworm ova, Taenia ova, Spirometra mansoni egg
• Intestinal protozoa: Trichomonas, Giardia spp., Coccidia
• Pathogenic microorganisms: Cocci, Bacilli, cocci-to-bacilli ratio, Yeast
• Cells: Red blood cell, White blood cell, Epithelial cells
• Digestive indicators: Starch granules, Fat droplets, Plant fiber, Muscle fiber

Urine test items

• Casts: HYA#, CEC#, GRA#, WAC#
• Crystals: MAP#, COC#, CP#, UAC#, CYSC#
• Cells: RBC#, WBC#, RTE#, SEC#, TEC#, SPF#
• Pathogens: COS#, BAC#, Fungal#
• Other: FAT#, PHL#

Technical specifications

• Model: YSTE-MVA60
• Brand: YSENMED
• Sample types: Anticoagulant whole blood (EDTA), feces, urine
• Sample volumes: 30µL (blood), 200µL (feces), 400µL (urine)
• Reagent format: Single-use reagent cards
• Average detection time: ~8 minutes
• Operating conditions: 5–35°C; RH 25%–85%; pressure 33.64–101.3 kPa (≤ 6000 m)
• Power: AC 220V, 50Hz
• Connectivity: Bluetooth, WiFi; Interfaces: RJ45, 2×USB, RS-232
• Dimensions (W×D×H): 226.5 × 343.5 × 329.5 mm
• Weight: 12.5 kg
