Transport stretcher trolley TPBR

manualheight-adjustable

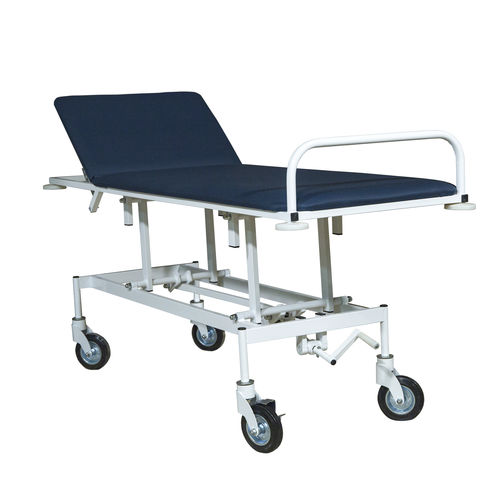

The trolley for transporting patients with adjustable height TPBR is used in medical institutions for transporting patients indoors: operating theatres, X-ray and treatment rooms, wards. The trolley consists of a welded frame mounted on four self-orienting wheels, which provide easy movement of the trolley. The trolley frame is made of steel pipes. The bed is made of chipboard, foam rubber, covered with vinyl leather. There is a U-shaped handle at the foot of the bed for easy movement of the wheelchair. The headrest can be adjusted to an inclined position. The inclined position is automatically locked. The height of the trolley is adjusted mechanically (by turning the handle). The trolley can be equipped with side plastic handrails. Overall dimensions, mm: length - 2085±10 width - 740±10 height - 580-850±10. Wheel support, mm - Ø 160±10. Headrest tilt angle - 0º, 15º, 30º, 45º. Rated load of the trolley, kg - 150. Trolley weight, kg - no more than 70.
