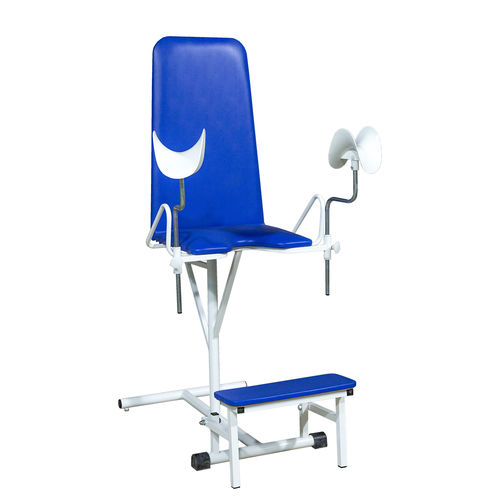

Gynecological examination chair KG-1ME

manualheight-adjustabletilting

Gynecological chair KG-1ME is used in medical institutions to accommodate women during gynaecological examinations, various procedures, as well as minor surgical interventions. The chair consists of a base, seat, backrest, footrest and removable components and accessories. The base of the chair is all-welded, tubular, mounted on two rubber feet and two height-adjustable feet (rear), which are designed to create stability of the chair in case of unevenness of the surface on which it is installed. The seat is rigidly attached to the base, to which the backrest is movably attached. The seat and backrest are metal frames with vinyl leather cushions attached to them. The backrest tilting mechanism consists of a movable rod that moves inside a movable joint, which is rigidly fixed to the base through a sleeve and has a prismatic clamp with a handle. The backrest can be manually raised or lowered to any angle within the specified range. To raise and lower the backrest, unscrew the clamp by turning it counterclockwise, set the backrest to the desired position and lock it. A folding footrest is hinged to the front of the base. The footrests are height adjustable, can be rotated around a vertical axis and are equipped with movable cushions that can swing relative to the horizontal axis. Overall dimensions, mm: length - 100010 - 165010 width along the trays - 90010 height - 80010 - 165010. Backrest angle - 10 - 90. Maximum permissible load on the chair, kg - no more than 150. Weight of the chair, kg - no more than 36.
