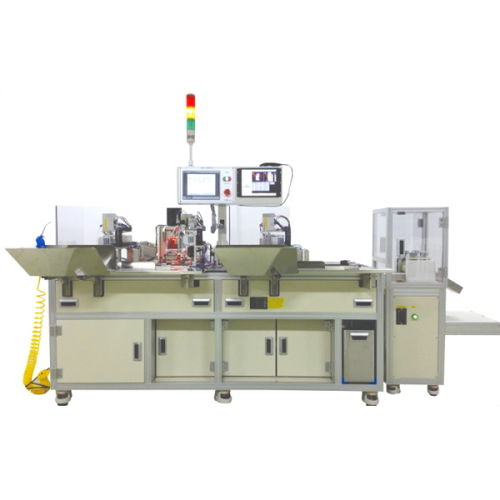

Automatic assembly machine SAIA-210

for medical device manufacturing

SAIA-210 semi-automatic system is comprised of several modules that automatically process and assemble multiple base test components to produce the final product of rapid test device. The system automatically cuts card into strips, places them inside bottom devices (manually fed), places top devices onto the bottom piece, presses them together, and then are discharged to collection bin to complete the assembly process. The integral inspection system make sure that only the “good” test devices pass through the assembly process while the “bad or NG” (substandard grade) are automatically discarded. This smart with its cutting-edge system ensures maximum production output and quality. The system is essentially the same as AIB-300 (fully-automatic) except for the Bowl Feeder module that automatically feeds devices (Cassettes). Therefore, for this model, 2 persons are required to manually feed the devices to the machine. FEATURES HIGH THROUGHPUT: Non-stop operation for the ultimate production output. AUTO QC SYSTEM: Dual inspection stations via Vision Cam. STANDARD FEATURES Touch screen panel for easy setup and operation. Automatic discarding of defective material. Quick & easy blade removal for easy cleaning and maintenance. Alarm messages to pinpoint error/jam location for efficient correction. SPECIFICATIONS - Required Manpower: 2 persons (Top & bottom device feeding) - Device Feeding Method: Manual (Option: Auto-feeding magazine) - Device Type: Rectangular shaped device for rapid test - Capacity: Approximately 1,800 ~ 2,200 devices/hour (Actual number depends on worker’s performance and devices' length and shape, strip size, and etc.)
