Intensive care bed YA-D6-3

electricTrendelenburgheight-adjustable

Product overview

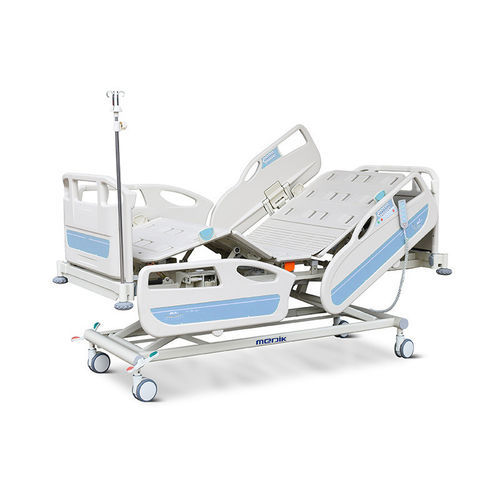

The YA-D6-3 is a fully electric hospital bed designed for ICU and critical care environments. Ergonomic layout, integrated safety elements and electrically controlled adjustments support patient handling and clinical workflows.

Key features

• Full-length protection railing with angle indicator
• Insert-type head/foot ends for rapid removal in emergencies
• Bumper casters on all four corners for impact protection
• Electric CPR handle (optional)
• Quiet, robust electric actuators for reliable operation
• Remote handset control for all electrical functions
• Central-controlled braking system
• Nurse controller (optional)
• Embedded railing control (optional)

Technical specifications

• Model: YA-D6-3
• Overall size: 2200×1000×480 mm (86.5” × 39” × 20”)
• HI-LOW range: 480–780 mm (20”–31”)
• Backrest adjustment: 0–75° ±5°
• Footrest adjustment: 0–40° ±5°
• Trendelenburg / Reverse-Trendelenburg: 0–12°
• Castors diameter: 125 mm (5”)
• Loading capacity / Safe working load: 230 kg (505 lbs)
• Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse Trendelenburg
• Certificate: ISO / CE
• Warranty: 3 years on frame and welds; 1 year on parts

Warranty & compliance
ISO and CE certified. Warranty covers structural frame and welds for 3 years; components covered for 1 year. Optional accessories and controllers are available to adapt the bed to ICU workflows.
