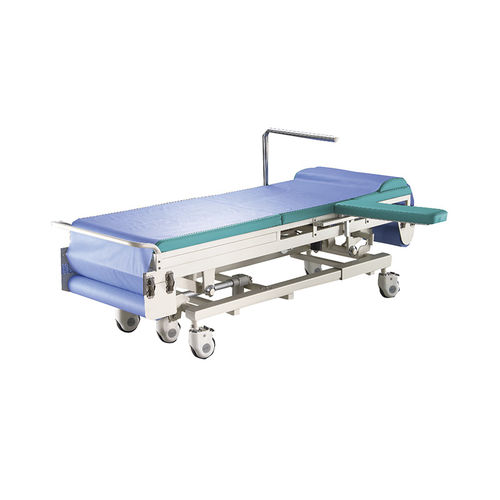

Ultrasound imaging examination table YA-EC-U03
electricheight-adjustablereverse Trendelenburg

Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 2
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 3
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 4
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 5
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 6
Ultrasound imaging examination table - YA-EC-U03 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / reverse Trendelenburg - image - 7
Add to favorites
Compare this product
Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications
for ultrasound imaging
Operation
electric
Features
height-adjustable, with adjustable backrest, Trendelenburg, reverse Trendelenburg, on casters
Weight capacity

Min.: 170 kg
(374.8 lb)

Max.: 250 kg
(551.2 lb)

Length

210 cm
(82.7 in)

Width

77 cm
(30.3 in)

Height

Min.: 62 cm
(24.41 in)

Max.: 90 cm
(35.43 in)

Description

Product overview
Automatic linen sheet change improves exam efficiency and hygiene in ultrasound rooms. The YA-EC-U03 provides comprehensive position adjustment capabilities, a quick-change sheet system with automatic deviation correction, battery backup and centrally braked castors—designed for diagnostic ultrasound environments.

Main features
  • Steel frame with powder coating: durable, antibacterial and corrosion-resistant
  • Seamless high-density mattress: antibacterial, corrosion-resistant and scratch-proof
  • Trendelenburg / Reverse Trendelenburg, height, back and seat section adjustment
  • Sheet roll holders at both ends of the table
  • Automatic bed sheet change with automatic deviation correction
  • Quick bed sheet changing system for fast turnover
  • Four 5-inch castors with central brakes for easy transport and locking
  • Emergency stop button
  • Battery backup for emergency operation


Technical specifications
  • Model: YA-EC-U03
  • Overall size: 2100 × 770 × 620 mm (85.5" × 30.7" × 22.6")
  • Height adjustment: 620–900 mm (22.6"–35.4")
  • Trendelenburg / Reverse Trendelenburg angle: 0–12°
  • Back section: 0–70° ±5°
  • Seat section lifting: 0–100 mm (0–4")
  • Static working load: 170 kg (374 lbs)
  • Dynamic working load: 250 kg (550 lbs)
  • Castors: 5-inch diameter with central brakes
  • Net weight: 145 kg
  • Gross weight: 185 kg
  • Certificates: CE / ISO
  • Warranty: 3 years on frame and welds, 1 year on parts
  • After-sales service: Online technical support
