Skin rejuvenation phototherapy lamp LUM-R3325

aestheticmuscle recoverybody slimming

Overview

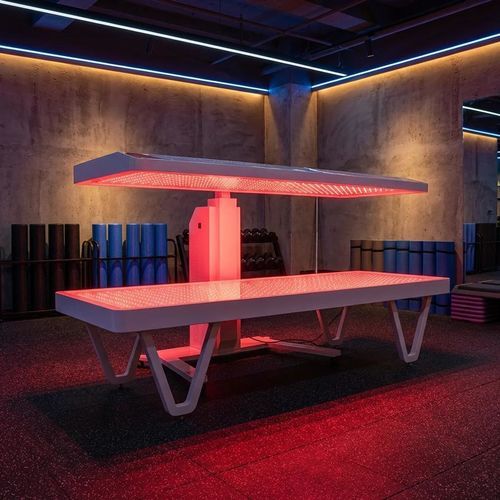

Epistar LED source delivering combined red and near-infrared wavelengths (633 nm, 660 nm, 850 nm, 940 nm) in a dual-structure system: an overhead panel plus a therapy bed. System power 2700 W and measured irradiance 60 mW/cm² designed for full-body photobiomodulation with adjustable treatment distance and standalone panel operation.

Key Features

• Integrated full-body system: overhead panel + bed for uniform coverage and precise wavelength distribution.
• Irradiance 60 mW/cm² to support effective treatment dosing.
• Epistar LED chips rated up to 100,000 hours for long service life.
• Five clinical preset programs plus one custom mode for repeatable protocols and fast setup.
• Electric height/distance adjustment on the panel for individualized treatment positioning.
• 7-inch LCD touchscreen for intuitive control.
• Plug-and-play with multi-region plug options (EU/US/AU/UK) for straightforward installation.
• Intelligent temperature-controlled cooling and low-EMF design for stable operation.
• Manual mode for per-wavelength tuning (frequency/duty) and Intelligent mode combining all four wavelengths for balanced coverage.

Benefits / Treatment Applications

• Collagen support: promotes collagen-related activity to improve skin firmness and elasticity.
• Body contouring support: aids metabolic and circulatory processes used in wellness and shaping protocols.
• Muscle recovery: assists post-exercise recovery by reducing muscle tension and soreness.
• Pain relief: supports localized pain and discomfort management in clinical and wellness settings.
• Flexible deployment: suitable for professional environments such as aesthetic clinics, spas, physiotherapy and rehab centers, fitness and recovery studios, and for supervised home use.

Product Detail (table)
Light Source: Taiwan Epistar
LED Lifespan: 100,000 hours
LED QTY: 1408 PCS (Red Light Bed); 1584 PCS (Red Light Panel)
Wavelengths: Red 633 nm, 660 nm; NIR 850 nm, 940 nm (customizable)
Irradiance: 60 mW/cm²
Cabin Color: White
Machine Power: 2700 W
Pulsing Frequency: 1–10,000 Hz
Voltage: AC110/AC220V
Product Size: Red Light Panel L1919mm × W1045mm × H1065mm; Red Light Bed L2114mm × W816mm × H478mm

Operation & Service

• One-tap preset sessions reduce setup time and improve repeatability in a professional workflow.
• Custom mode enables rapid parameter adjustments to match client tolerance and treatment goals.
• Designed for professional deployment with options for wholesale, OEM/ODM and private-label, including ready marketing assets (photos, spec sheets).

Technical Specifications

• Model: LUM-R3325
• Light Source: Taiwan Epistar
• LED Lifespan: 100,000 hours
• LED Quantity: 1408 PCS (Red Light Bed); 1584 PCS (Red Light Panel)
• Wavelengths: 633 nm, 660 nm (red); 850 nm, 940 nm (near-infrared) — customizable
• Irradiance: 60 mW/cm²
• Machine Power: 2700 W
• Pulsing Frequency Range: 1–10,000 Hz
• Voltage: AC110 / AC220 V
• Panel Size: 1919 × 1045 × 1065 mm (L×W×H)
• Bed Size: 2114 × 816 × 478 mm (L×W×H)
• Cabin Color: White
• Control Interface: 7-inch LCD touchscreen
• Programs: 5 clinical presets + 1 custom mode
• Cooling: Intelligent temperature-controlled cooling with automatic fan control
• Safety / Design: Low-EMF design; plug-and-play with multi-region plug options
