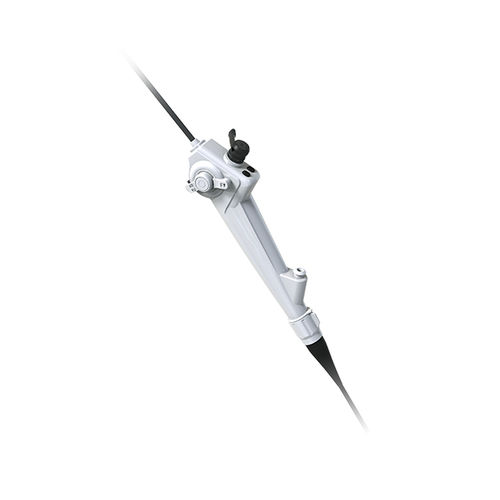

Video veterinary gastroscope VD Series

for small animalswith working channel

Specifications Model: VD-14PF Insertion Tube: 2.8mm Working Channel: 1.2mm Working Length: 600mm Field of View: 120° Depth of Field: 3-100mm Bending (Up/Down): U/D 210° Rotation (Left/Right): L/R 120° Definition: SD Model: VD-14H Insertion Tube: 4.8mm Working Channel: 2.2mm Working Length: 600mm Field of View: 120° Depth of Field: 3-100mm Bending (Up/Down): U/D 210° Rotation (Left/Right): L/R 120° Definition: HD Model: VD-14HT Insertion Tube: 5.8mm Working Channel: 2.8mm Working Length: 600mm Field of View: 120° Depth of Field: 3-100mm Bending (Up/Down): U/D 210° Rotation (Left/Right): L/R 120° Definition: HD Model: VBRD-25 Insertion Tube: 4.8mm Working Channel: 2.2mm Working Length: 1000mm Field of View: 120° Depth of Field: 3-100mm Bending (Up/Down): U/D 210° Rotation (Left/Right): L/R 120° Definition: HD Applications Rhinoscopy Retrograde rhinoscopy Laryngoscopy Bronchoscopy Otoscopy Urethroscopy Advantages Multiple Buttons: ①Photograph/Video ②Freeze Suction Button Compound Bending: Up 210° /Down 210 Rotation: Left/Right 120 Angle-lock Switch Slim Diameter Compatible with 10 Inch Image Processor D-1211 High Integration, Portable, Touch-screen High Resolution 1280*800 USB Solution compatible with optional processor VHP-1315 D-2322 Laptop/Tablet
