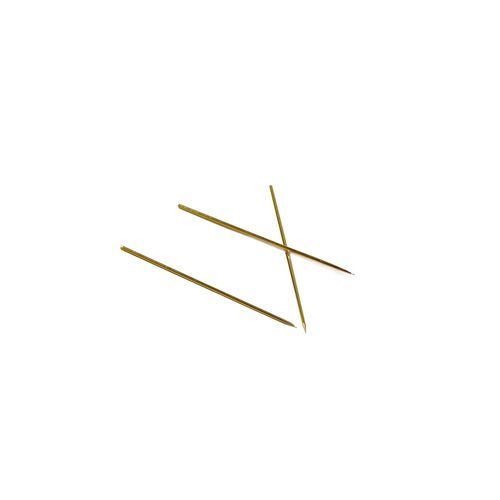

Sterile needle ZPT-MNWNG-002

intradermalultra-fine25G

Product Overview
ZorayPT’s non-nickel gold-plated microneedle (Model ZPT-MNWNG-002) is a hypoallergenic precision device designed for safe and effective transdermal delivery in aesthetic and cosmetic applications. Engineered to eliminate nickel entirely, the product addresses skin-allergy and toxicity concerns in markets with strict nickel regulations. The variant uses a direct three-valent gold undercoating followed by 24K gold plating on a medical-grade stainless steel 304 or 316L (SUS304/SUS316L, customizable) base to provide a biocompatible, low-irritation surface suitable for sensitive skin treatments.

Design and Manufacturing
The design focuses on a nickel-free undercoating with three-valent gold and 24K gold plating to create a continuous conductive layer that enhances electrical properties for electro-microneedling while minimizing risk of nickel-induced reactions. The gold layer also contributes to antimicrobial properties and a premium finish that supports faster healing and improved serum penetration. Tip shapes (tapered, flat, round) and microneedle configurations (solid or hollow) are customizable to match treatment goals. The production process employs automatic cutting, automatic grinding, laser welding, acid cleaning, deactivation, and electrochemical polishing to achieve burr-free, polished inner and outer surfaces, ensuring smooth insertion and low resistance for patient comfort.

Quality Control and Packaging
Full magnification microscope inspections verify each needle for defects to meet rigorous skin-contact device standards. Microneedles are packaged in individual sterile blister packs (customizable to bulk packaging) to ensure sterility and readiness for clinical use. Lightweight and ergonomic integration reduces practitioner fatigue and allows precise control during extended sessions.

Key Features

• Specifications: Diameters 25-35G (0.15mm-0.5mm, customizable) for fine transdermal delivery.
• Needle lengths: 5mm to 25mm (customizable) for varied treatment depths.
• Base material: Medical-grade stainless steel 304 or 316L (SUS304/SUS316L, customizable).
• Tip shapes: Tapered, flat, round (customizable) for specific applications.
• Microneedle types: Solid or hollow (customizable) for serum delivery.
• Coating: Three-valent gold undercoating + 24K gold plating (customizable schemes).
• All in-house manufacturing: One-stop production (plastic molding, metal processing, assembly) for quality control.

Applications

• Microneedling therapy: precise serum delivery for skin rejuvenation.
• Acne scar treatment: controlled penetration for scar revision.
• Anti-aging procedures: enhanced conductivity for wrinkle reduction and advanced therapies (e.g., LED-enhanced microneedling, RF microneedling).

Why Choose ZorayPT?

• One-stop manufacturing with in-house processes for integrated quality control.
• ISO 13485 certified, produced in a Class 100,000 cleanroom.
• Hypoallergenic, nickel-free design for international markets requiring low-allergen materials.
• Automated production enabling faster lead times and cost-efficient manufacturing.

Non-nickel Gold-plated Microneedle Specifications (table)
Parameter : Details
Product model : ZPT-MNWNG-002
Diameter : 25-35G (0.15mm-0.5mm, customizable)
Needle Length : 5mm-25mm (customizable)
Tip Shape : Sharpened tip (customizable)
Microneedle Type : Solid or hollow (customizable)
Coating : Nickel-free undercoating + Gold plating (customizable schemes)
Base Material : Medical-grade AISI 316/304 stainless steel (customizable)
Application : Microneedling therapy, acne scar treatment, anti-aging procedures

Technical characteristics

• Model identifier: ZPT-MNWNG-002
• Diameter range: 25G–35G (0.15–0.5 mm), customizable
• Needle length range: 5 mm–25 mm, customizable
• Tip shapes: tapered, flat, round (customizable)
• Microneedle types: solid or hollow (customizable)
• Base materials: SUS304 or SUS316L medical-grade stainless steel (customizable)
• Coating: nickel-free undercoating with three-valent gold and 24K gold plating (customizable)
• Inspection: full magnification microscope inspection for defect verification
• Packaging: individual sterile blister packs (customizable)
