Data processing module R1-358801

data acquisitionimage interpretationUSB

Product introduction

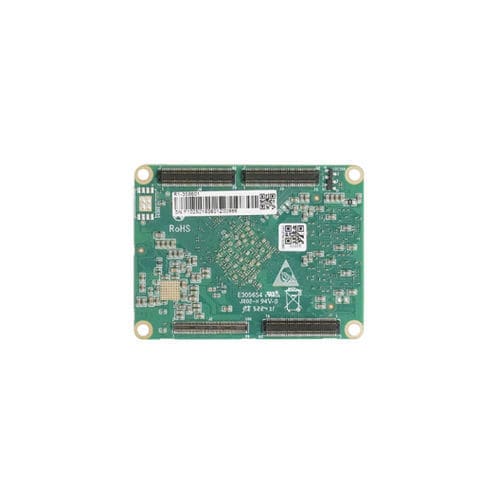

R1-358801 is a compact ARM core board based on the Rockchip RK3588 octa-core 64-bit SoC (4×Cortex-A76 + 4×Cortex-A55) built on an 8nm process, up to 2.4GHz. With a 66×50mm footprint and a TDP range of 0.4–12W, it delivers high compute density and energy efficiency for embedded industrial systems. Supports Android and Linux.

Technical details
The board integrates on-board LPDDR4 4GB RAM and eMMC 32GB storage. Graphics and AI: Mali-G610 MP4 GPU and 6TOPS NPU. Multimedia: HDMI2.1 output up to 8K@60Hz or 4K@120Hz; MIPI-DSI up to 4K@60Hz; HDMI2.0 input for video capture. Video encode up to 8K@30FPS (H.264/H.265); decode up to 8K@60FPS (H.265/VP9), 8K@30FPS (H.264), 4K@60FPS (AV1). Interfaces include PCIe3.0 (2×x2 + 1×x4 + 4×x1), 2×Gigabit Ethernet, 3×SATA3.0, 3×USB3.1 Gen1, 4×USB2.0, 1×2-channel I2S, 15×GPIO, 8×UART, 4×I2C, 3×PWM, 1×SDMMC, MIPI DSI/CSI and an independent watchdog. Backplane power input 4V (±5%). Operating temperature 0–60°C; storage -20–70°C.

Key features

• RK3588 octa-core up to 2.4GHz, 8nm process
• Compact 66×50mm ARM core board
• On-board 4GB LPDDR4 RAM + 32GB eMMC storage
• HDMI2.1 8K output and 8K encode/decode capability
• PCIe3.0 expansion, dual Gigabit LAN and 3×SATA3.0

Applications
Suited for AIoT edge computing, industrial control, intelligent vision systems, digital signage, video processing and other ARM-based embedded scenarios.

Specifications (summary)

• Model: R1-358801
• Processor: Rockchip RK3588, 4×Cortex-A76 + 4×Cortex-A55, up to 2.4GHz
• Memory/Storage: On-board LPDDR4 4GB + eMMC 32GB
• Graphics/NPU: Mali-G610 MP4; 6TOPS NPU
• Display & Video: HDMI2.1 up to 8K@60Hz; MIPI-DSI up to 4K@60Hz; HDMI2.0 input; encoding/decoding as specified
• Interfaces: PCIe3.0 multi-lane, 3×SATA3.0, 3×USB3.1 Gen1, 4×USB2.0, 2×Gigabit LAN, MIPI DSI/CSI, GPIO/UART/I2C/PWM
• Power & Temperature: Backplane 4V (±5%); Operating 0–60°C; Storage -20–70°C
• OS: Android / Linux
