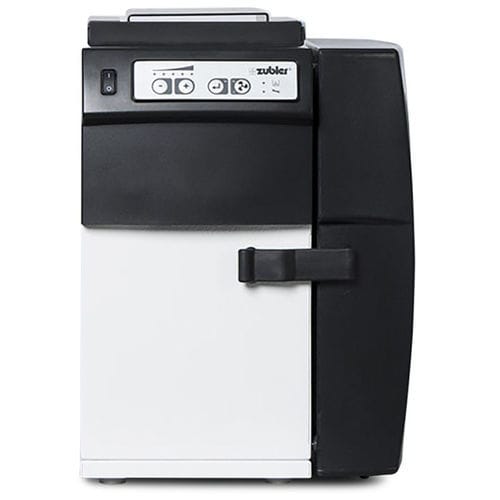

Healthcare facility dust suction unit Z1-M11
for dental laboratoriesmobilecompact

healthcare facility dust suction unit
healthcare facility dust suction unit
Add to favorites
Compare this product


for dental laboratories, for healthcare facilities
mobile, compact
Other characteristics
with filtration system, with integrated odor extraction system

Min.: 15 l/s (3.96 us gal/s)

Max.: 40 l/s (10.57 us gal/s)


Z1-M11 built-in suction unit with standard filter bag for working places and dust generating devices Table installation Narrow filter door Width: 300mm Height with handle: 410mm Depth: 435mm Weight: 19KG Voltage: 230V AC ±5%, 50-60Hz Noise level: 45-59dB(A) The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application. The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag. The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.
