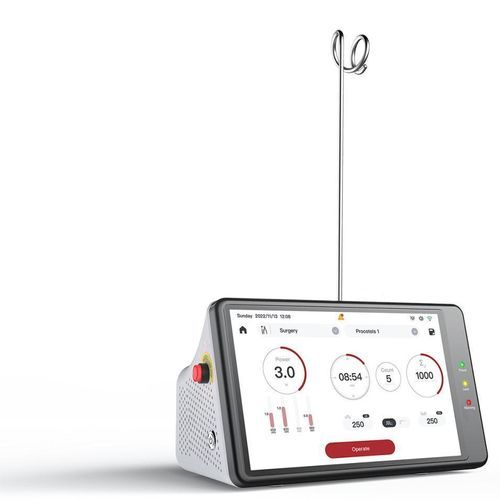

Laser cirúrgico CHEESE PLUS

odontológicopara bioestimulação odontológicapara bioestimulação em ortopedia

Overview
Mini Multi-Wavelength medical laser system. The four wavelengths of 450nm, 650nm, 810nm, and 1064nm. FDA 510(k) Number K230047.

Main features

• Multi-wavelength platform combining visible and near-infrared wavelengths for clinical, dental, therapy and veterinary applications.
• Available in multiple order models/configurations to suit dentistry, therapy and veterinary needs.
• Operation modes include Continuous Wave (CW) and Repeat Pulse (with IPS available on some therapy/veterinary models).

Wavelengths and clinical applications

• 450nm: Used for certain soft tissue surgeries (excision, incision) with reduced bleeding and tissue damage, accelerating healing and reducing patient pain.
• 650/635nm: Biostimulation and pain treatment; promotes healing and tissue regeneration, reduces inflammation and pain.
• 810nm: Deep tissue surgery (e.g., root canal treatment, oral surgery); penetrates bone and gums while minimizing collateral damage and bleeding.
• 980nm / 980nm/980nm-class references: Strong tissue penetration, ideal for deep tissue injury treatments (fractures, spinal disorders); noted potential in neurological therapy.
• 1064nm: Near-infrared wavelength for deep muscle, bone and joint treatments (e.g., pulpitis, bone tissue surgery); effective for inflammation relief and tissue healing.

Additional clinical notes

• Different wavelengths correspond to specialized uses in dentistry, therapy (rehabilitation & pain management), and veterinary medicine.
• Design supports both surgical and therapeutic procedures through adjustable pulse duration and repetition rates.

Table: Dentistry (parameters & variants)
Parameter | CHEESE PLUS (CP18G) | CHEESE PLUS (CP13G) | CHEESE PLUS (CP23G)
Order Model | CP18G | CP13G | CP23G
Wavelength | 635nm + 445nm + 810nm | 635nm + 445nm + 1064nm | 635nm + 445nm + 810nm + 1064nm
Maximum Power | 200mW + 3W + 15W | 200mW + 3W + 10W | 500mW + 3W + 10W + 10W
Pilot Beam | 532nm | 532nm | 532nm
Operation Mode | CW, Repeat Pulse | CW, Repeat Pulse | CW, Repeat Pulse
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Table: Therapy (parameters & variants)
Parameter | CHEESE PLUS (CP20RT) | CHEESE PLUS (CP20DRT)
Order Model | CP20RT | CP20DRT
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W
Pilot Beam | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Table: Veterinary (parameters & variants)
Parameter | CHEESE PLUS (CP20RV) | CHEESE PLUS (CP20RV) | CHEESE PLUS (CP25RV)
Order Model | CP20RV | CP20RV | CP25RV
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm | 635nm + 450nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W | 500mW + 5W + 10W + 10W
Pilot Beam | 635nm | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Usage domains

• Dentistry: soft tissue excision/incision, root canal, pulpitis treatment, oral & bone procedures.
• Therapy / Rehabilitation & Pain Management: biostimulation, inflammation reduction, musculoskeletal injury treatment, tendon and ligament care.
• Veterinary: rehabilitation, soft tissue & minimally invasive surgery, endoscopic & lithotripsy procedures, equine rehabilitation.

caractéristiques / spécifications techniques

• Commercial name (model series): CHEESE PLUS
• Available order models (examples): CP18G, CP13G, CP23G, CP20RT, CP20DRT, CP20RV, CP25RV
• Wavelengths (available combos): 445nm, 450nm, 635/650nm, 810nm, 980nm, 1064nm
• Maximum output examples: combinations up to (e.g.) 500mW (visible pilot) + multiple W outputs per NIR channel (examples in tables: up to 20W on some channels)
• Pilot beam(s): typically 532nm or 635nm depending on model
• Operation modes: CW, Repeat Pulse; IPS available on therapy and veterinary variants
• Pulse duration range: 10 μs – 3 s
• Repetition rate range: 0.2 Hz – 20 KHz
• Applicable disciplines: Dentistry, Therapy (rehabilitation & pain management), Veterinary medicine
• Regulatory note: FDA 510(k) Number K230047 (listed on the page)
