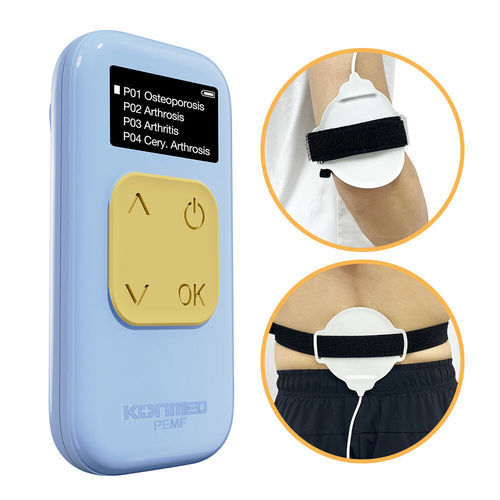

Aparelho de magnetoterapia KM330A

Description
What is magnetotherapy
Magnetotherapy is a form of physiotherapy that uses electromagnetic energy to stimulate the regeneration of biologic tissues.
Magnetotherapy is a physical therapy based on low-frequency and low-intensity Pulsed Electro Magnetic Fields (PEMFs).
It avails itself of the action of a magnetic field generated by the electric current that goes through a coil (solenoid). The solenoid is composed of a metal conductor wrapped in a series of coils. The direction of the current determines a polarity, so each coil will have a North and a South pole.
The patient population intended for magnetotherapy treatment using the KM330A device includes patients of both sexes, men and women, of age (unless otherwise indicated by medical doctors).
Indications

• wrist, hand, shoulder, foot, ankle and knee articulation
• skeletal motor apparatus
• arthrosis
• atrophies and muscular dystrophy
• bursitis
• bruises
• degeneration of locomotor apparatus
• sprains
• periarthritis
• benign lesions and muscular tears
• tendinitis

SPECIFICATIONS
Power supply: DC 3.7V/ 900mAh rechargeable lithium battery
Charging port voltage: DC 5V, 0.5A
Safety Category: BF type
Number of channels: 1
Display: 1.77 OLED screen
Field strength: 0-30GS(±30%)
Square wave frequency: 5-75Hz
Duty cycle: 80%
Timer: 30-180 minute countdown timers.
Service life: 5 years
Environment for Operation: Temperature:5℃~40℃; Humidity:≤80%RH; Atmospheric pressure: 70~106kPa
Environment for Transportation & Storage: Temperature: -10℃~+55℃; Humidity: ≤90%RH; Atmospheric pressure: 50~106kPa

Package Content

• 1 PEMF device
• 1 universal flexible applicator
• 2 elastic bands (S and L size)
• 1 test emissions magnet
• 1 Charging wire（Type-C plug）
• 1 User Manual

List of Modes
P01 : L program
P02 : H program
P03 : Osteoporosis
P04 : Arthrosis
P05 : Arthritis
P06 : Cerv. Arthrosis
P07 : Articular Pain
P08 : Cervicalgias
P09 : Sprains
P10 : Fractures
P11 : Epicondylitis
P12 : Epitrocleitis
P13 : Intercost. Con.
P14 : Lumbalgy
P15 : Lumbar Pain
P16 : Shoulder Art.
P17 : Knee Arthrosis
P18 : Periarthritis
P19 : Coxarthrosis
P20 : Musc. Atrophy
P21 : Musc. Contract.
P22 : Osteonecrosis

Caractéristiques / spécifications techniques

• Power supply: DC 3.7V/ 900mAh rechargeable lithium battery
• Charging port voltage: DC 5V, 0.5A
• Safety Category: BF type
• Number of channels: 1
• Display: 1.77 OLED screen
• Field strength: 0-30GS(±30%)
• Square wave frequency: 5-75Hz
• Duty cycle: 80%
• Timer: 30-180 minute countdown timers
• Service life: 5 years
• Operating environment: Temp 5℃~40℃; Humidity ≤80%RH; Pressure 70~106kPa
• Storage/transport environment: Temp -10℃~+55℃; Humidity ≤90%RH; Pressure 50~106kPa
