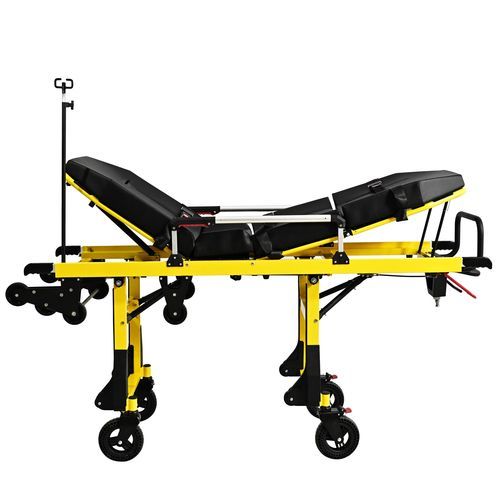

Carro-maca de transporte YHR-A12

de emergênciamanualdobrável

Overview - The main material is high-strength aluminum alloy, hardened and surface treated. - The total height of the stretcher can be adjusted in ≥3 levels, which is convenient for performing CPR. - The height of the front support can be adjusted in 2 levels and the rear support in 3 levels. - The backrest is controlled by a pneumatic spring for angle adjustment; backrest angle: 0-88°; the legs are mechanically supported for position change at 0° or 15°. - There are three wheels on the loading part, allowing a wider range of height for boarding. - The handrail is made of aluminum and plastic, the stretcher has two safety belts. - The universal wheels at the front end have an elastic lock, which can be locked for straight movement or universal as needed; rear universal wheel with brake. - Only one medical staff member is needed to push the stretcher into the ambulance. - The locking mechanism is controlled by levers, the stretcher must be fixed with the device when loaded into the ambulance! - Loading height: 580-690 mm; wheel size: Ø200 mm. - The stretcher mattress is made of PVC material with a concave shape, thickness: 10 cm. The mattress has continuous high-frequency stitching and is waterproof, easy to clean. - Equipped with a 2-stage IV stand; stretcher fixing device. - Optional accessories: oxygen cylinder holder. Technical Specifications - Name: Ambulance stretcher - Model: YHR-A12 - Feature: Overall height adjustable - Four universal wheels. The front wheels can be locked for steering - Can be adjusted to suitable height for CPR - Adjustable heights of the three wheels: 585 mm, 640 mm, 685 mm - Adjustable structural guardrail, height: 17.5 cm - Two safety belts - Simultaneous three-point locking device - Four retractable handles at both ends - Material: High-strength aluminum alloy and treated surface - Mattress: Waterproof U-shaped upper mattress, 10 cm thick - Wheels: φ200 mm - High Position: 197x57.5x101 cm - Low Position: 197x57.5x47 cm - Backrest Angle: 0-90° - Leg Angle: 0° or 15° - N.W.: 51.5 kg - Load Capacity: Max. 200 kg (440 LBS) - Packing: 207x60x47 cm; 1 set/CTN - G.W.: 62 kg
