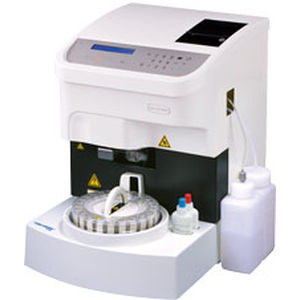

Automatic osmometer OM-6060

laboratory

The OM-6060 measures the osmotic pressure of body fluids such as blood serum, plasma and urine. Noise-free and accurate measurement using Freezing-point depression Micro sample volume Required sample volume: only 200 μL Free calibration 3-point calibration 2-point calibration Calibration data is memorized unless the power is turned off Various measurement modes Osmotic pressure ratio measurement Control measurement Specifications Measurement objects - Blood serum, plasma, and urine *1 Measurement items - Osmotic pressure and osmotic pressure ratio of body fluid Measurement range - 0 - 2000 mOsm (Switchable to "0 - 2500 mOsm"*2) Measurement principle - Freezing-point depression using ultra supercooling Sample supply - Turntable unit Measurement precision - CV 1 % or less (200 - 300 mOsm) Processing speed - 2 to 3 minutes per sample Required sample volume - Minimum 200 μL (500-μL sample cup), Minimum 2 mL (o.d. 12.3 × height 100 mm sample collection tube) Sample container - 500-μL sample cup, sample collection tube (o.d.12.3 × height 100 mm) Number of measurement samples - Maximum 24 samples Calibration - 3-point calibration (0, 300, 1000 mOsm : polygonal line approximation), 2-point calibration (any 2 points : logarithmic curve approximation) Display - 24-digit by 2-line LCD Built-in printer - 58-mm width thermal printer paper (24 digits) Memory capacity - 500 measurement results External output - Compliant with RS-232C standard (Compatible with OM-6050, OM-6040, OM-6030, and OM-6020) Ethernet (option) Measurement environment - Temperature: 10 - 30°C; Humidity: 20 - 80% RH (No condensation) Dimensions - 320 (W) × 460 (D) × 447 (H) mm
