PCR electrophoresis system / horizontal / bench-top
MultiSUB Screen Cleaver Scientific



  • Applications:

    for PCR

  • Configuration:

    horizontal, bench-top


Key Features

With the MSSCREEN the content of at least one 96-well microplate or thermal cylinder block may be screened in a single gel. Standard combs may be exchanged for 56-sample versions to double the sample capacity. A dedicated system for all high-throughput screening applications the MultiSUB Screen is ideal for checking very large numbers of samples or extended high resolution separations:
Available with 26 x 16, 26 x 24 and 26 x 32cm, or all three gel trays
Run up to 672 samples
Buffer recirculation included
Multichannel pipette compatible combs for speed loading

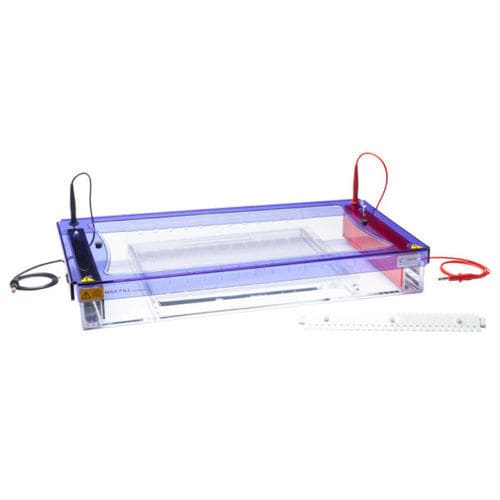

Designed for rapid screening of very large numbers of Clonal or PCR samples, the MultiSUB Screen horizontal gel unit has a 672 maximum sample capacity per gel. This allows loading and analysis of exactly seven 96-well format microtitre plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands, such as in restriction fragment analysis.

The unit is available with a full length tray or with other tray length options of 16 or 24cm so that the user’s exact requirements can be matched. In addition to options for single length gel trays, the MultiSUB Screen is available with all three gel tray lengths to provide the maximum in flexibility, versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs while loading guides enhance well visibility for easy sample loading.

All MultiSUB Screen units now have the MS26-FC Flexicaster included.
