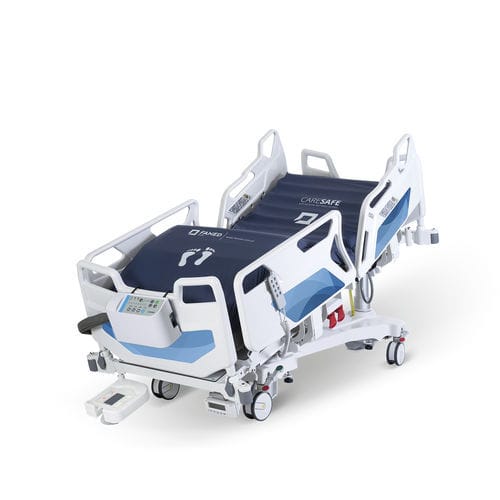

intensive care bed / electric / height-adjustable / Trendelenburg
LE-13 Famed Żywiec

{{requestButtons}}

Characteristics

  • Applications:

    intensive care

  • Operation:

    electric

  • Features:

    height-adjustable, Trendelenburg, reverse Trendelenburg

  • Other characteristics:

    medical, on casters

  • Number of sections:

    4-section

Description

Bed length: 2280 mm
Total bed length with the bed frame extension: 2480 mm
Total bed length with shortened bed frame: 2180 mm
Total bed width: 965 mm
Total bed width with side rails PB-15: 970 mm
Total bed width with raised side rails PB-22: 990 mm
Total bed width with lowered side rails PB-22: 1040 mm
Mattress length x width: 2060 x 840 mm
Height adjustment: 465-865 mm (electric actuator)
Back rest segment inclination: 0°-74° (electric actuator)
Thigh rest segment inclination: 0°-45° (electric actuator)
Shank rest segment inclination: 24°
Shank rest segment adjustment: (gas spring)
Trendelenburg position: 15° (electric actuator)
Reverse-Trendelenburg position: 17° (electric actuator)
Lateral tilts: 25° (electric actuator)
Back rest segment autoregress: 120 mm
Thigh rest segment autoregress: 90 mm
Bed frame extension: 200 mm
Bed frame shortening (option): 100 mm
Permissible load: 230 kg
Power supply: 230/127/110/100 V ~, 50/60 Hz
