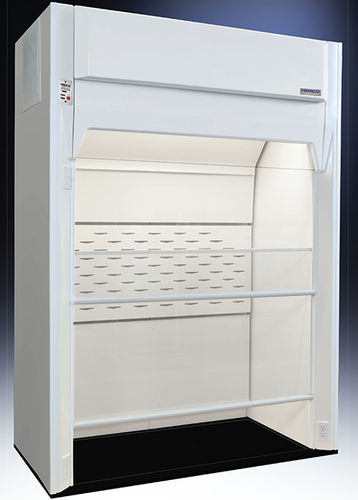

Chemical fume hood 11060

exhaustlaboratorywalk-in

UniFlow SE , & LE Floor Mounted (Walk-In) hoods, in sizes 48", 60", 72", 96", 120" & 144" & depths of 30", 36", & 48". Hoods are available in custom sizes to meet various applications & are ideally suited for synthesis, & other rack type operations where tall apparatus is used or equipment is rolled into the work area. Modular construction can be shipped disassembled for on-site assembly. UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, superior durability and long life. Interior fume chamber one-piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. 5 year warranty. Meets U.L.1805, & NFPA-45 classification with flame spread of less than 25 per ASTM E-84. UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. Vapor Proof LED light fixture polished stainless steel reflectors, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed High Efficiency sash management provides for energy savings. - User Protection with sash in lowered position, fumes are kept safely away from the user. - 62” Sash Height for viewing of fume chamber, loading and unloading equipment for set up. Includes upper and lower sash. 82” Stand Up Height for ease of access and interior depths of 24”, 30”, and 42” available.
