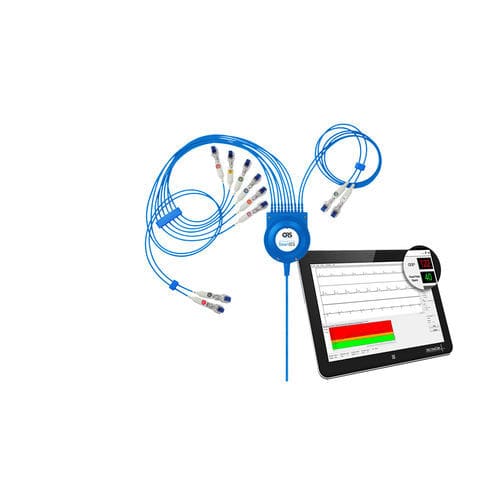

Resting electrocardiograph VectraplexECG

15-channel22-channelcomputer-based

VectraplexECG provides the Cardiac Electrical Biomarker, CEB®, a technology to detect ECG changes suggestive of acute ischemic injury, including AMI. Providing a powerful diagnostic test right in your ECG machine. VectraplexECG can derive a 12 to 15-lead ECG report with just 5 electrodes. The Cardiac Electrical Biomarker The CEB® is our smartest ECG technology! It can detect ECG changes suggestive of a heart attack. Simply, it is a color coded index number that measures the degree of di-polarity of the cardiac electrical field. The cardiac electrical field of a healthy patient is primarily di-polar1, while occurrence of myocardial injury leads to the appearance of a multi polar cardiac electrical field2. A CEB® greater than 94 indicates an abnormal condition and further clinical assessment is necessary. ALL VECTRAPLEXECG DEVICES CAN Use 5-electrodes to derive a 15-lead ECG (US) and 22-lead ECG (EU). Option to use 10-electrodes for a 12-lead ECG. Derive a Cardiac Electrical Biomarker, CEB®, that will detect ECG changes suggestive of an AMI One push email capability EMR Connectivity.
