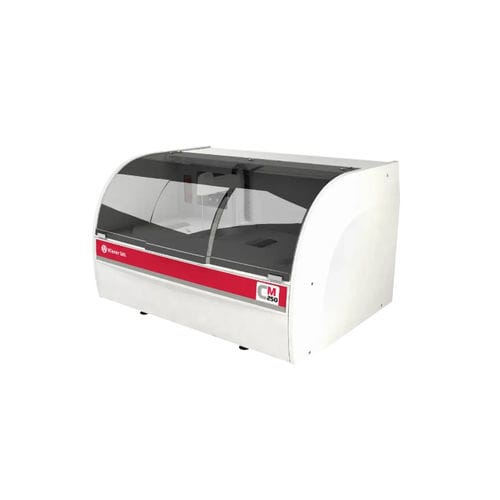

Automatic biochemistry analyzer CM 250
compactbenchtoprandom access

automatic biochemistry analyzer
automatic biochemistry analyzer
automatic biochemistry analyzer
automatic biochemistry analyzer
automatic biochemistry analyzer
automatic biochemistry analyzer
automatic biochemistry analyzer
Add to favorites
Compare this product


Characteristics

Operation
automatic
Configuration
benchtop, compact
Technology
random access
Sample type
clinical
Options
with STAT port
Throughput

230 p/h

Sample volume

Min.: 0.002 ml
(0.000068 US fl oz)

Max.: 0.1 ml
(0.003381 US fl oz)

Number of sample positions

48 unit

Reagent volume

Min.: 0 ml
(0 US fl oz)

Max.: 0.7 ml
(0.02 US fl oz)

Number of reagent positions

48 unit

Weight

59 kg
(130.1 lb)

Width

85 cm
(33.5 in)

Height

48 cm
(18.9 in)

Description

Compact benchtop analyzer for clinical chemistry and immunoturbidimetry Quick: routine samples, STAT sample priority, panels Adaptable: random access, batch. Continue sample load Optimize daily operations through the sample barcode reader Connection to LIS: Decreases error rate Low water consumption Main features: Measuring system: Pipetting system: Capacitive liquid level sensor Internal and external needle washing system Shock sensor Thermostatted reagent arm Reaction tray: 80 cuvettes with 0.6 cm light path Incubation by pre-heated air (30°C and 37°C) Washing unit: Automatic 5-step bucket washer with drying Water consumption: less than 1 L/h Optical system​: Double beam photometer​​​ Interference filters: 340, 405, 505, 550, 570, 590, 650, 700 and 767 nm (380 and 450 nm optional)​​​ Photometric range: -0.1 - 3.5 Abs Bandwidth: 10 nm Halogen Lamp 6V - 20W Measuring system: Methodology: End point with sample blank or reagent blank One and Two Point Kinetics Turbidimetry Factor, standard or curve calibration Routine, emergencies, profiles​ Automatic dilution of pathological samples or by substrate consumption Pre-dilution of samples if required Quality control: Levy-Jennings charts, Westgard Rules Sampling system: Continuous load Sample Predilution Barcode reader (optional) Reagent System: Reagents: Peltier cooled to 12°C below T.A. Peltier effect cooled Vials of 20, 30 and 50 mL

Catalogs

CM250
CM250
2 Pages
