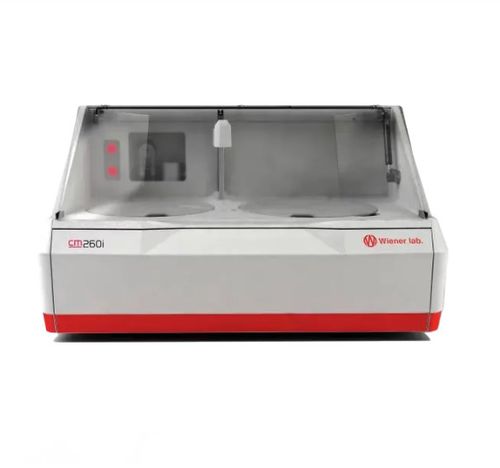

Automatic clinical chemistry analyzer CM 260i

for clinical diagnosticbenchtoplaboratory

Simple and fast management of routine samples, emergencies, profiles Precision and security. Clot detection Excellent walkaway time. Automatic cuvette washing ISE Module. Na-K-Cl. Reliable results: direct potentiometry Continuous samples and reagents loading. Uninterrupted work Optimize daily operations through the sample barcode reader Reduces reagent loading times. Barcode reader for reagents Fully automatic connection to laboratory information systems (LIS). Host Query technology Low water consumption (<1 L/H) Main Features Water consumption : <1 L/h Measuring system Pipetting system: Capacitive liquid level sensor Internal and external needle washing system Shock sensor Thermostatted reagent arm Pipetting system: 80 cuvettes with 0.6 cm light path Incubation by pre-heated air (30°C and 37°C) Extra reaction tray Washing unit: Automatic 5-step bucket washer with drying Water consumption: less than 1 L/h Optical system​: Double beam photometer​​​​​​ Interference filters: 340, 405, 505, 550, 570, 590, 650, 700 and 767 nm (380 and 450 nm optional)​​​​​​ Photometric range: -0.1 - 3.5 Abs Bandwidth: 10 nm Halogen Lamp 6V - 20W Measuring system Methodology End point with sample blank or reagent blank One and Two Point Kinetics Turbidimetry Factor, standard or curve calibration Routine, emergencies, profiles​ Automatic dilution of pathological samples or by substrate consumption Pre-dilution of samples if required Quality control: Levey-Jennings charts, Westgard Rules Sampling system: Continuous loading Sample Predilution Barcode reader Reagent System: Continuous loading Dedicated barcoded reagents
