Compact micropumps

3 companies | 141 products
{{#pushedProductsPlacement4.length}} {{#each pushedProductsPlacement4}}
{{product.productLabel}}
{{#if product.activeRequestButton}}
{{/if}}
{{product.productLabel}}
{{product.model}}

{{#each product.specData:i}} {{name}}: {{value}} {{#i!=(product.specData.length-1)}}
{{/end}} {{/each}}

{{{product.idpText}}}

{{productPushLabel}}
{{#if product.newProduct}}
{{/if}} {{#if product.hasVideo}}
{{/if}}
{{/each}} {{/pushedProductsPlacement4.length}}
{{#pushedProductsPlacement5.length}} {{#each pushedProductsPlacement5}}
{{product.productLabel}}
{{#if product.activeRequestButton}}
{{/if}}
{{product.productLabel}}
{{product.model}}

{{#each product.specData:i}} {{name}}: {{value}} {{#i!=(product.specData.length-1)}}
{{/end}} {{/each}}

{{{product.idpText}}}

{{productPushLabel}}
{{#if product.newProduct}}
{{/if}} {{#if product.hasVideo}}
{{/if}}
{{/each}} {{/pushedProductsPlacement5.length}}
micropump for the medical industry
micropump for the medical industry

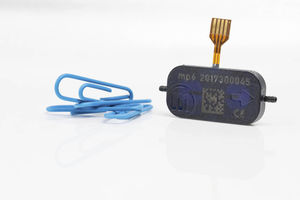

mp6-hyb

Pressure: 500 mbar

technical data - liquids: controlable flowrate 8 µl/min up to 8.000 µl/min typ. flow rate 6 ml/min & typ. back pressure 500 mbar @100 Hz, 250 Vpp, SRS signal gas: min. flow rate 12 ml/min & min. back pressure 80 mbar @100 Hz, ...

See the other products
Bartels Mikrotechnik GmbH
micropump for the medical industry
micropump for the medical industry
mp6-liq

Pressure: 800 mbar

technical data - liquids: controlable flowrate 8 µl/min up to 14.000 µl/min typ. flow rate 12 ml/min & typ. back pressure 800 mbar @200 Hz, 250 Vpp, SRS signal material in contact with media: PPSU lifetime: 5.000h mp6-liq Order ...

See the other products
Bartels Mikrotechnik GmbH
micropump for the medical industry
micropump for the medical industry
mp6-pp

Pressure: 500 mbar

technical data - controlable flowrate 8 µl/min up to 4.000 µl/min typ. flow rate 4 ml/min typ. back pressure 500mbar @100 Hz, 250 Vpp, SRS signal material in contact with media: PP lifetime: 5.000h Pump type piezoelectric ...

See the other products
Bartels Mikrotechnik GmbH
micropump for the medical industry
micropump for the medical industry
mp6-gas

Pressure: 100 mbar

technical data - typ. flow rate 20 ml/min typ. back pressure 100 mbar @300 Hz, 250 Vpp, SRS signal material in contact with media: PPSU lifetime:5.000h Pump type piezoelectric diaphragm pump Number of actuators 2 Dimensions ...

See the other products
Bartels Mikrotechnik GmbH
micropump for the medical industry
micropump for the medical industry
mp6-gas+

Pressure: 150 mbar

technical data - typ. flow rate 20 ml/min typ. back pressure 150 mbar @300 Hz, 250 Vpp, SRS signal material in contact with media: PPSU lifetime: 5.000h Pump type piezoelectric diaphragm pump Number of actuators 2 Dimensions ...

See the other products
Bartels Mikrotechnik GmbH
micropump for the medical industry
micropump for the medical industry
mzr-2505

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-2905

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-4005

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-4605

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-6305

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-7205

Pressure: 0 bar - 5 bar

... the device belong high precision, low pulsation, low volume dosage even of non-lubricating liquids or at high pressures, compact design and an integrated microcontroller. The pump allows dosage in a broad viscosity range ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-7208

Pressure: 0 bar - 5 bar

... service life wear-resistant tungsten carbide Broad viscosity range methanol, water, solvents, adhesives, grease, gel Compact dimensions length 211 mm Dynamic precision motor brushless DC-motor with encoder Low ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-7208X1

Pressure: 0 bar - 5 bar

... service life wear-resistant tungsten carbide Broad viscosity range methanol, water, solvents, adhesives, grease, gel Compact dimensions length 211 mm Dynamic precision motor brushless DC-motor with encoder Low ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-11507

Pressure: 0 bar - 10 bar

... wear resistance for low volume dosage of non-lubricating liquids. Driven by a high-power three-phase AC-motor the pump has a compact design and covers the flow range from 29 ml/min to 1152 ml/min. The mzr-11507 is suitable ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
mzr-11508

Pressure: 0 bar - 10 bar

... life and wear resistance for low volume dosage of non-lubricating liquids. Driven by a high-power DC-motor the pump has a compact design and covers the flow range from 0.19 ml/min to 1152 ml/min. The mzr-11508 is suitable ...

See the other products
HNP Mikrosysteme GmbH
micropump for the medical industry
micropump for the medical industry
100 EC

Pressure: 450, 500, 600 mbar

Pneumatic performance free flow at outlet:400 ml/min450 ml/min550 ml/min at 100 mbar:340 ml/min340 ml/min400 ml/min max. pressure:500 mbar450 mbar600 mbar at -100 mbar:270 ml/min300 ml/min400 ml/min max. vacuum:-400 mbar-400 mbar-500 mbar

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
100 EC

Pressure: 550, 620, 650 mbar

Operating voltage6 Vdc9 Vdc12 Vdc Pneumatic performance free flow at outlet:550 ml/min600 ml/min620 ml/min at 100 mbar:400 ml/min450 ml/min450 ml/min max. pressure:550 mbar650 mbar620 mbar at -100 mbar:350 ml/min450 ml/min400 ml/min max. ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
100 EC-BLp

Pressure: 500 mbar

Operating voltage3 Vdc Pneumatic performance free flow at outlet:500 ml/min at 100 mbar:350 ml/min max. pressure:500 mbar at -100 mbar:300 ml/min max. vacuum:-420 mbar

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
100 EC-LC

Pressure: 550 mbar

Operating voltage3 Vdc5 Vdc Pneumatic performance free flow at outlet:600 ml/min600 ml/min at 100 mbar:400 ml/min400 ml/min max. pressure:550 mbar550 mbar at -100 mbar:350 ml/min350 ml/min max. vacuum:-550 mbar-550 mbar

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
100 EC-DU

Pressure: 600, 700, 1,500 mbar

Operating voltage4 Vdc6 Vdc12 Vdc Pneumatic performance serial/parallelserial/parallelserial/parallel free flow at outlet:430 / 850 ml/min550 / 1000 ml/min430 / 850 ml/min at 100 mbar:390 / 700 ml/min500/ 850 ml/min390 / 700 ml/min max. ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
200 EC-LC

Pressure: 650 mbar

Mini pumps specially designed to pump small volumes. Minimal size, low power consumption, high precision controllability. The use of less expensive motors in the 200 EC-LC proves to be an optimal solution for a price-sensitve mass production. Made ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
250 EC

Pressure: 400 mbar

Mini pumps specially designed to pump small volumes. Minimal size, low power consumption, high precision controllability. Also deliverable with special long life ball bearings, as in the SP 250 EC-DB (“double ball”). Made for portable ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
270 EC

Pressure: 600, 700 mbar

Operating voltage3 Vdc5 Vdc12 Vdc Pneumatic performance free flow at outlet:580 ml/min600 ml/min600 ml/min at 100 mbar:450 ml/min400 ml/min500 ml/min max. pressure:600 mbar600 mbar700 mbar at -100 mbar:400 ml/min400 ml/min500 ml/min max. ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
270 EC-LC

Pressure: 600 mbar

Operating voltage5 Vdc9 Vdc12 Vdc Pneumatic performance free flow at outlet:600 ml/min600 ml/min600 ml/min at 100 mbar:500 ml/min500 ml/min400 ml/min max. pressure:600 mbar600 mbar600 mbar at -100 mbar:500 ml/min500 ml/min400 ml/min max. ...

See the other products
Schwarzer Precision GmbH + Co.KG
micropump for the medical industry
micropump for the medical industry
270 EC-BL

Pressure: 700 mbar

Operating voltage12 Vdc Pneumatic performance free flow at outlet:700 ml/min at 100 mbar:550 ml/min max. pressure:700 mbar at -100 mbar:500 ml/min max. vacuum:-600 mbar

See the other products
Schwarzer Precision GmbH + Co.KG
