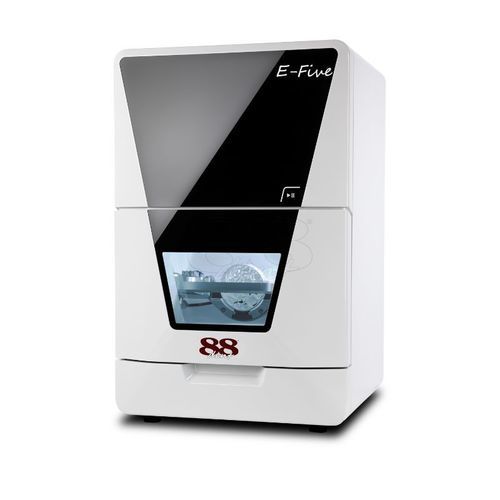

CAD/CAM milling machine E-FIVE

dentalspindlecompact

The E-FIVE is a compact, high-performance five-axis dry dental milling machine designed for flexible installation and reduced operating costs. It integrates an open system architecture with included CAM software enabling immediate plug & mill operation.

Key benefits:

• Maximum installation freedom thanks to operation without external compressed air
• Reduced operating costs and easy integration into digital workflows
• Plug & Mill: ready to use with included CAM software

Features:

• 5 axes
• 1 Blank
• 6 Blocks
• 17 Tools

AIRTOOL innovation:
The E-FIVE uses the patent-pending AIRTOOL which eliminates the need for an external compressor. AIRTOOL's turbine blades generate a powerful airflow at high spindle speed to keep the workpiece free of swarf and dust; chips and dust are removed by the suction system.

Operation & design:
Top-class five-axis dry milling with simple operation, optimised construction weight and industrial-grade components delivering consistent, high-quality results.

Technical specifications:

• Model / denomination: E-FIVE
• Manufacturer / brand: 88dent
• Product code: 88S-264560
• Axes: 5
• Blanks supported: 1 Blank
• Blocks supported: 6 Blocks
• Tools (max / included): 17 Tools
• Dry milling with AIRTOOL (no external compressed air required)
• Chip/dust removal: suction
• Included software: CAM software (included)
• Optimised machine weight: approx. 47 kg
• Intended use: digital production of dental restorations
