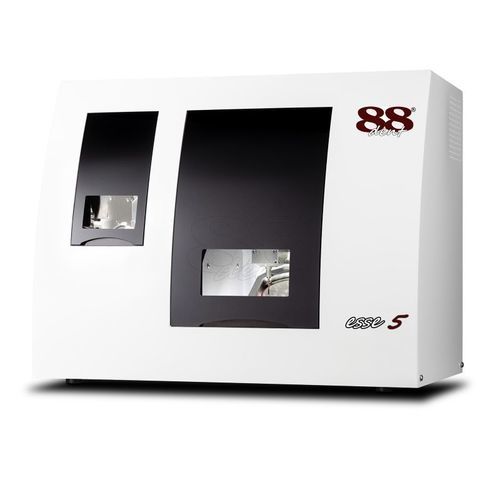

CAD/CAM milling machine Esse5

dentalfor dental laboratoriesfor dental clinics

Esse 5 is a compact, five-axis dental milling machine engineered for simultaneous 5-axis machining, continuous operation and high-precision production.

Overview

• Combines a rotary B axis with an automatic 16-position tool changer and an 8-position automatic disc changer for uninterrupted, versatile milling and the ability to machine undercuts
• Capacity for up to 24 blocks or 48 prefabricated abutments with automatic changeover for extended runs
• Prepared for wet milling: spindle equipped with liquid nozzles to deliver coolant to the tool tip for processing glass-ceramics and titanium
• Synchronous spindle with precision bearings: 600 W power, up to 60,000 rpm and 3 µm repeatability
• One-piece solid construction with cast iron base to reduce vibration and improve stability
• Compatible with common dental materials including CoCr, titanium, glass-ceramic and acrylics
• Includes DentalCAM with DirectMill (no licence fees) for integrated CAM workflow
• Designed for continuous day/night operation; 24-month warranty

Main highlights

• Simultaneous 5-axis machining for complex geometries and undercut processing
• Continuous production enabled by 8-position disc changer and 16-position tool changer
• Support for spare replacement tools to maintain operation when tools wear or break
• Wet milling readiness for machining glass-ceramics and titanium
• High repeatability and stability for consistent ultra-HD results

Why choose Esse 5?

• Maximum precision and repeatability for prosthetic and restorative workflows
• High operational uptime due to automatic disc and tool changers
• Versatility across discs, blocks and tools with optional wet milling
• Compact footprint with robust cast-iron base for reduced vibration
• Integrated CAM software included to simplify production setup

Technical specifications

• Axes: 5 simultaneous axes (including B rotary axis ±30°)
• Disc changer: 8-position automatic disc changer
• Block capacity: up to 24 blocks (or 48 prefabricated abutments with automatic changeover)
• Tool changer: 16-position automatic tool changer (support for spare/replacement tools)
• Spindle: synchronous spindle, 600 W, up to 60,000 rpm, precision bearings
• Positioning / repeatability: 3 µm repeatability
• Machine body: one-piece solid construction, cast iron base
• Materials: compatible with CoCr, titanium, glass-ceramic, acrylics; wet milling option available
• Software: DentalCAM with DirectMill included (no licence fee)
• Warranty: 24 months
• Operation: designed for continuous day & night use
