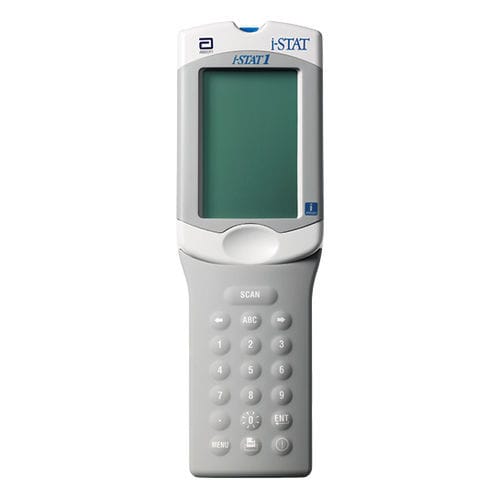

Biochemistry POC analyzer i-STAT 1

electrochemicalfor hematologyfor clinical chemistry

Presentation
A portable blood analyzer that delivers laboratory-quality diagnostic results in minutes. Lightweight, portable and easy to operate, the i-STAT 1 blood analyzer works with the advanced i-STAT test cartridge technology. Together they form the i-STAT System — a point-of-care testing platform that provides healthcare professionals with diagnostic information at the time and place of patient care.

Benefits
Wide Test Menu
Single-use i-STAT test cartridges provide a broad menu of tests on one portable platform. Each cartridge contains a unique combination of biosensors to address a wide range of clinical needs.

Ease of Use
Testing is performed in four simple steps at the bedside using only 2 to 3 drops of whole blood. Clear, comprehensive instructions guide the operator through the testing process.

Laboratory-equivalent Rapid Results
Delivers accurate results in approximately 2 minutes for most tests.

Portable
Bedside testing and rapid result delivery streamline workflows and remove steps, transfers and delays to reduce errors, enable faster decision-making and optimize patient care.

Connected
The i-STAT 1 can connect to multiple data management systems, including Info HQ® or AEGISPOC™, to integrate seamlessly with laboratory information systems (LIS) and electronic medical records (EMR). Optional quality management features and STAT notes allow integration and management of results, operators and devices.

Diagnostic test range
i-STAT System
Lactate
Blood gases
Chemistry and electrolytes
Cardiac markers
Coagulation
Hematology
Endocrinology

Clinical objectives

• Standardize and consolidate testing across clinical environments
• Improve performance on key quality indicators
• Expand access to testing and enhance the patient care experience

Features / technical specifications

• Dimensions: Width 7.68 cm (3.035 in) Length 23.48 cm (9.245 in) Depth 7.24 cm (2.85 in)
• Weight: With rechargeable battery 650 grams (22.9 oz), with disposable battery 635 grams (22.4 oz)
• Power: Two 9-volt lithium batteries, or rechargeable battery
• Calibration: Factory electronic, mechanical, thermal, pressure
• Display: SuperTwist liquid crystal dot matrix
• Communication link: Infrared light emitting diode (LED)
• Operating temperature: 16-30 °C (61-86 °F) for i-STAT cartridge analysis
• Transport temperature: -10-46 °C (14-115 °F)
• Laser scanner: Compliant with 21 CFR 1040.10 and 1040.11 (Laser Notice No. 50); EN 60825-1:1994 + A1:2002 + A2:2001; IEC 60825-1:1993 + A1:1997 + A2:2001
