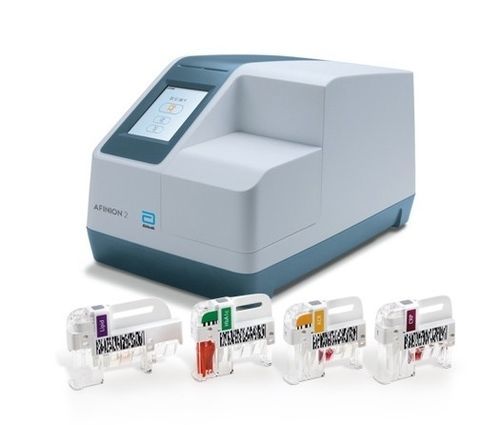

Urinary disease POC analyzer Afinion™ 2

for inflammatory diseasesfor diabetesfor cardiovascular diseases

Overview
The Afinion™ 2 analyzer is a fast, compact multi-test platform delivering clinically relevant point-of-care results close to the patient. In three simple steps, accurate results for HbA1c, ACR, C-reactive protein (CRP) and a lipid panel are available during the consultation. A single capillary sample provides HbA1c values in minutes, enabling immediate follow-up and clinical decision-making.

Benefits

• Four parameters available on a single platform: HbA1c, lipid panel, ACR and CRP.
• Rapid, clinically relevant results during the patient consultation.
• Ready-to-use test cartridges: single-use test with integrated sampling device and all required reagents.
• Built-in self-test procedures and error detection to reduce inconsistent results.
• Analyzers are factory-calibrated; lot calibration data are read by the integrated camera.

Key features

• Tests: HbA1c, lipid panel (total cholesterol, LDL, HDL, triglycerides...), ACR (urinary albumin/creatinine ratio) and CRP.
• Sample types: supports multiple matrices (e.g., capillary whole blood) depending on the test.
• Automated result transfer to HIS/LIS via TCP/IP.
• Supported data transfer protocols: POCT1-A, HL7, ASTM 1381-85 (low level) and ASTM 1394-97 (high level), selectable in configuration.
• USB port for barcode reader or printer connection (optional).
• Secure system: quality control (QC) lock and operator lock.
• No user maintenance or additional calibration required.

Battery and mobility
The Afinion™ 2 is now offered with a new battery and a carrying case (availability varies by country).

• The battery provides up to 10 hours of continuous power (or approximately 60 tests), optimizing POC testing for mobile units, drive-through sites, home visits and care homes.
• Carrying case designed for easy transport (backpack or shoulder carry).

Product codes (excerpt)
Afinion™ 2 analyzer — 1116770 (Worldwide); 1116682 (Nordic countries); 1116558 (Japan).
Afinion™ 2 battery — 1117292 (EMEA, excluding UK and Nordics); 1117291 (United Kingdom).
Afinion™ carrying case — B5592 (EMEA only).

Documents / Videos
The product page provides demonstration videos and support resources (user demonstrations, quality and commercial videos).

Technical specifications

• Parameters: HbA1c, lipid panel, ACR and CRP.
• Ease of use: intuitive interface, color touchscreen.
• Dimensions: 20 cm x 19 cm x 33 cm.
• Weight: 3.4 kg.
• Display: color touchscreen.
• Connectivity: USB port (barcode reader/printer optional), supports POCT1-A, HL7, ASTM 1381-85 and ASTM 1394-97 protocols.
• Security: QC lock and operator lock; integrated secure system.
• Maintenance: no user maintenance required.
• Calibration: no additional user calibration required (factory calibration; lot calibration data encoded in batch barcode and read by the integrated camera).
