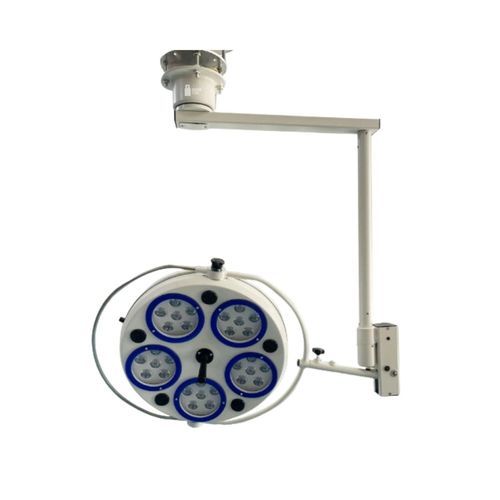

Ceiling-mounted surgical light STH0960

LED220V / 50Hz90

Product Overview
Abronn Ceiling LED Surgical Light BX24 is a state-of-the-art medical lighting solution designed for modern surgical environments. It provides adjustable high-intensity illumination with accurate color reproduction and low heat emission, suitable for a wide range of surgical procedures.

Key Features

• Adjustable illuminance: 100,000 to 180,000 Lux
• High Color Rendering Index (CRI): ≥ 90 for true-to-life color rendition
• Color temperature: 4800 ± 300 K
• Deep beam depth: 2500 mm for consistent illumination over depth
• Spot diameter (adjustable): 160 – 220 mm
• Light source: 30 high-efficiency LED lamp beads (3.2 V / 1 W each)
• Service life of LEDs: approximately 30,000 hours
• Low head temperature rise: < 1 °C to minimize heat in the surgical field
• Supply voltage: 220 V / 50 Hz

Typical Applications

• Operating theatres and surgical suites
• Minor procedure rooms and examination theatres
• Any clinical setting requiring precise, shadow-minimized illumination

Caractéristiques / spécifications techniques

• Model: BX24
• Brand: Abronn
• SKU: STH0960
• Illuminance: 100000 – 180000 Lux
• CRI: ≥ 90
• Color temperature: 4800 ± 300 K
• Beam depth: 2500 mm
• Spot diameter: 160 – 220 mm (adjustable)
• LEDs: 30 lamp beads, 3.2 V / 1 W per bead
• LED service life: 30,000 hours
• Supply voltage: 220 V / 50 Hz
• Head temperature rise: < 1 °C
