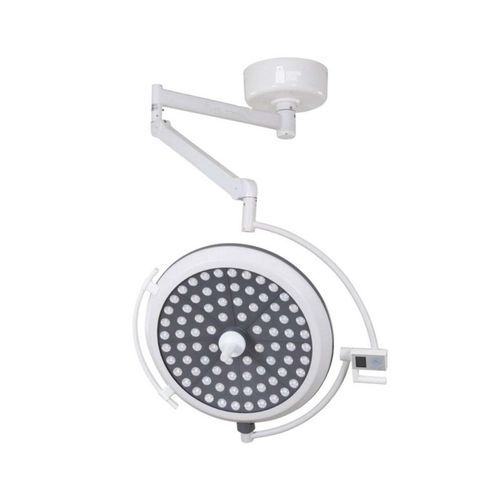

Ceiling-mounted surgical light BX28

LEDwith control panel

Product Overview
Abronn Ceiling LED Surgical Light (LED700) is a high-performance lighting solution engineered for modern operating rooms. Powered by Osram LED technology, it provides bright, energy-efficient, long-lasting cold light. The LED700 combines a fully sealed, streamlined lamp holder for laminar-flow compliance with an aluminum-alloy lampshade for effective heat dissipation. Adjustable brightness, contrast and color temperature (3000K–6700K) and an optional LED touch LCD control enable precise lighting for varied procedures.

Key Features

• Osram LED cold light source with expected service life > 60,000 hours
• High energy efficiency versus traditional halogen lamps
• Cold light effect: no UV/IR radiation, minimizes operating room temperature rise
• Fully sealed, streamlined round lamp holder designed to support laminar flow
• Aluminum alloy lampshade for superior heat dissipation
• Customizable lighting: adjustable brightness, contrast and color temperature (3000K–6700K); optional LED touch LCD control panel
• Advanced focusing system for precise illumination of deep or intricate surgical sites; adjustable focus for different procedures
• Lightweight balance-arm suspension with 360° rotation and precise positioning
• Independent LED modules offer redundancy; individual module failure does not compromise overall lighting

Product Specifications

• Light Source: Osram LED cold light technology
• Service Life: Over 60,000 hours
• Energy Consumption: Low (significantly less than traditional halogen lamps)
• Color Temperature Range: 3000K – 6700K
• Brightness: Customizable to surgical requirements
• Design: Fully sealed, streamlined lamp holder for optimal laminar flow
• Heat Dissipation: Aluminum alloy lampshade
• Suspension System: High-quality balance arm with 360° rotation and precise positioning
• Control Panel: Optional LED touch LCD control panel
• Failure Mode: Independent LED modules for redundancy and reliability

Technical Specifications

• Brand: Abronn
• Model: LED700
• Commercial designation: LED700
• SKU: STH0943
• Typical lifetime (LED): > 60,000 hours
• Color temperature range: 3000K – 6700K
• Rotation / positioning: 360° suspension arm
• Housing / lampshade material: Aluminum alloy (for heat dissipation)
• Control: Adjustable brightness, contrast and color temperature; optional LED touch LCD
• Design features: Fully sealed lamp holder for laminar flow compliance; independent LED modules for low failure risk
