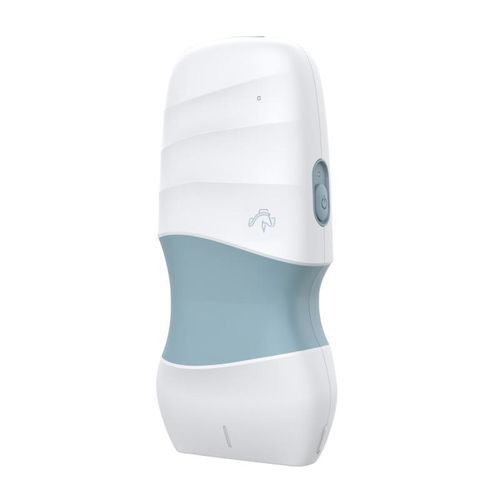

Hand-held veterinary ultrasound system neo L154v

multipurposefor small animalscolor doppler

Product Overview The neo L154v is a handheld wireless linear ultrasound probe designed for veterinary point-of-care imaging. It provides a 4–15 MHz frequency range and up to 12 cm scan depth for examination of musculoskeletal structures, small organs, peripheral vessels and carotid evaluations in animals.

Key Benefits Wireless, pocketable form factor and continuous scanning up to 80 minutes enable fast bedside and field assessments. Integrated image storage, cloud service and DICOM export support clinical workflow and recordkeeping in veterinary practice.

Applications (Veterinary)

• Abdomen
• Musculoskeletal (conventional)
• Musculoskeletal (superficial)
• Small organs (breast, scrotum, thyroid)
• Peripheral vessels
• Carotid
• Urology / bladder
• FAST / EFAST
• Lung

Specifications (summary) Linear array
Frequency range: 4–15 MHz
Image scan depth: max. 12 cm
Dimensions: 135.54 (L) x 62.17 (W) x 37 (H) mm
Battery life: continuous scanning up to 80 minutes
Scan modes: B, Color Doppler, M, PW, Power Doppler
Additional features: image storage, cloud service, local/remote image export, DICOM export
Protection: IP68; drop-tested to MIL-STD-810H

Clinical Imaging Highlights

• High-resolution linear imaging for musculoskeletal, vascular and small-organ assessment.
• Color and pulsed-wave Doppler for vascular flow evaluation.
• Portable wireless operation for rapid bedside or field use.
• Image storage and cloud integration with DICOM export for documentation and review.

Technical specifications

• Transducer type: Linear array
• Frequency range: 4–15 MHz
• Image scan depth: maximum 12 cm
• Dimensions: 135.54 mm (L) x 62.17 mm (W) x 37 mm (H)
• Battery life: continuous scanning up to 80 minutes
• Scan modes: B, Color Doppler, M-mode, PW (pulsed wave), Power Doppler
• Additional features: image storage, cloud service, local/remote image export, DICOM export
• Ruggedness/protection: IP68; drop-tested to MIL-STD-810H
• Intended use: veterinary handheld wireless ultrasound probe for point-of-care diagnostic imaging
