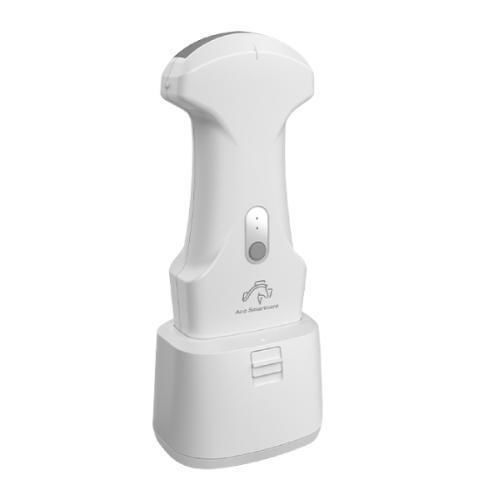

Hand-held ultrasound system C62

for lung ultrasound imagingfor urology ultrasound imagingfor abdominal and pelvic ultrasound imaging

Description The C62 is a handheld wireless ultrasound scanner providing convex-linear imaging for a wide range of clinical indications. Its 64-channel architecture delivers high-resolution images with improved delineation of structures and reliable visualization in hard-to-reach areas. The probe’s highly integrated design enables rapid image acquisition and efficient workflow suitable for point-of-care and departmental use. Connectivity options include local image storage, cloud services and DICOM export for seamless integration into clinical systems.

Applications

• Abdomen
• Gynecology
• Fetal/Obstetric
• Cardiac (Pediatric/Adult)
• Urology/Bladder
• Pediatric
• FAST/EFAST
• Nerve
• Lung

Specifications Frequency range : 2~6 MHz
Image Scan Depth : Max. 30 cm
Dimension : 171.5 (L) x 80 (W) x 40 (H) mm
Battery Life : Continuous scanning up to 2.5 hrs.
Cradle : Power Bank for additional 1.5 hrs.
Scan Mode : B, Color Doppler, M, PW, Power
Additional Features : Local Image Storage/Cloud Service, Remote Image Export/DICOM Export
Waterproof : IP67

Technical features / specifications

• Probe type : Convex linear array
• 64-channel system for detailed imaging
• Frequency range : 2~6 MHz
• Imaging depth : up to 30 cm
• Dimensions : 171.5 x 80 x 40 mm (L x W x H)
• Battery life : continuous scanning up to 2.5 hours
• Cradle / Power Bank : additional approximately 1.5 hours
• Scan modes : B, Color Doppler, M, PW, Power
• Additional functions : local image storage and cloud service, remote image export, DICOM export
• Ingress protection : IP67
