Piezoelectric ultrasonic insert Sinus Lift

for dental surgerydiamond-coated

Overview
The Sinus Lift Kit ACTEON is a set of ultrasonic surgical inserts designed for lateral (external) sinus lift procedures. The kit includes diamond-coated cutting tips and non-cutting spatulas dedicated to controlled bone window preparation and atraumatic membrane elevation.

Clinical benefits

• Precise bone window cutting with diamond-coated tips cooled by sterile spray to limit thermal damage
• Dedicated non-cutting spatulas enable controlled detachment and elevation of the Schneiderian membrane
• Cavitation effect improves visibility in the surgical field

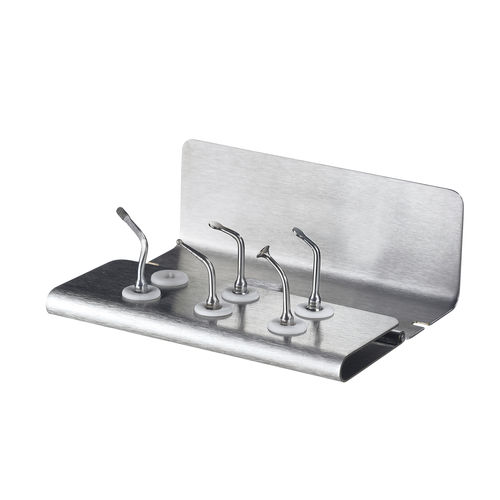

Kit contents

• SL1: diamond tip for cutting the vestibular bone window and smoothing sharp edges
• SL2: diamond ball Ø1.5 mm with 2 mm laser markings for edge smoothing and precision osteoplasty
• SL3: flat non-cutting elevator Ø5 mm for membrane elevation at the window edge
• SL4: non-cutting spatula Ø4 mm, 90° orientation for deep membrane detachment
• SL5: non-cutting spatula Ø4 mm, 135° orientation for membrane detachment and anatomical clearance

Usage and recommendations

• Indicated for lateral sinus lift procedures
• Use with compatible ultrasonic surgical unit and apply sterile spray cooling for diamond tips
• Follow manufacturer instructions, training and local regulatory requirements before use

Technical specifications

• Procedure type: lateral (external) sinus lift
• Technology: ultrasonic diamond-coated inserts and non-cutting spatulas
• Cooling: sterile spray for diamond tips
• SL2: ball Ø1.5 mm with laser marks every 2 mm
• SL3: flat elevator Ø5 mm
• SL4/SL5: spatulas Ø4 mm (90° and 135°)
• Included inserts: SL1, SL2, SL3, SL4, SL5

Multimedia

• Product page includes demonstration videos: "Sinuslift 3D" and "SL1"

Regulatory information

• Medical device Class I — CE marked
• Read labelling and instructions before use

Manufacturer

• Manufacturer: SATELEC (France); Brand: ACTEON
