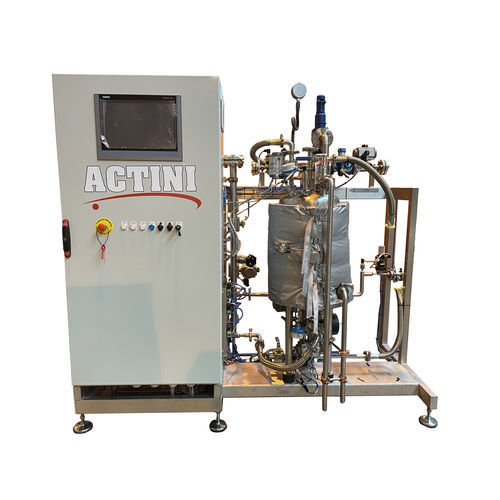

Effluent treatment system for the pharmaceutical industry ULTIBATCH

With a treatment capacity up to 1,800 liters per day and 3,600 liters per day, the UltiBatch decontamination system has been designed to offer a standard batch solution configurable with options. This compact and cost-effective model can be provided with one or two kill tanks. Decontamination Heat treatment with F050 depending on the required safety levels Standard set 135°C for 2 minutes or 125°C for 20 minutes (this latest set will impact the daily capacity) Specially adapted to treat effluent containing particles or viscuous products Design Patented system Tubular cooling section Reduced dimensions: L: 2,100 mm – W: 900 mm – H: 2,030 mm Energy recovery section for cooling the effluent at the outlet (included with the dual treatment tank model only) Fully instrumented system for an automatic operation Features Available capacities: 1,800 liters per day or 3,600 liters per day Steam operation – Chilled water required Kill tank(s) with steam tangential injection
