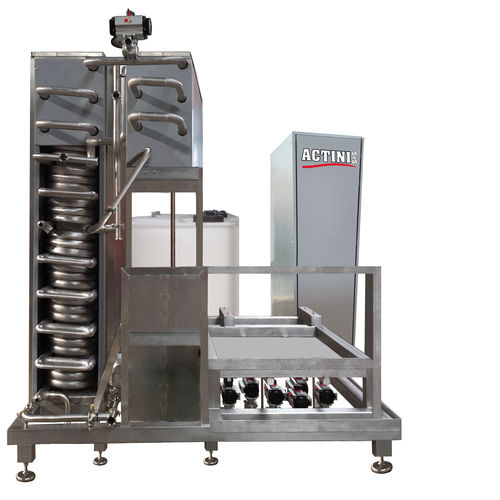

Modular effluent treatment system ULTIMATE PLUS

for the pharmaceutical industry

ACTINI has designed a continuous thermal effluent decontamination system that is fully standardized for bio-industries and laboratories that do not have specific pre-requisites in their URS. The ULTIMATE PLUS system is an ultra-compact model combining all the essential functions required to ensure decontamination with the advantages of a standard design in terms of price, time and ease of integration. Our modular range of ULTIMATE PLUS decontamination systems allows the decontamination of 3,000 to 12,000 liters per hour, i.e. a daily capacity of 10,000 to 192,000 liters of effluent per day. Decontamination Heat treatment with F0 > 25 depending on the required safety levels Standard set: from 80°C to 135°C for 1 minute (2 minutes as option) Design Tubular design allowing continuous treatment of large volumes All welded heat exchangers to avoid any risk of leakage and cross-contamination Steam heating Energy recovery section (savings of 80% of thermal energy used) Dimensions: look at our leaflet by clicking here Compliance with European or American standards Equipment components Starting tank and CIP (Cleaning in Place) preparation CIP tanks for storage of CIP solutions (Cleaning in Place) Pumping system secured by a filter Treatment section with energy recovery system Fully instrumented system (temperature sensor, flowmeter, pressure and level transmitters, valves) for fully automatic operation of the unit
