Cremation furnace TB-AB Equine

pressfor large animalshigh-temperature

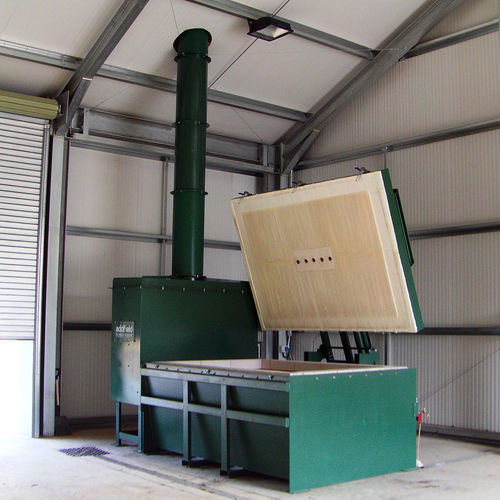

The Addfield TB-AB cremation machine is our largest top loading equine cremation unit, with an internal chamber size of 4.18m³, the TBAB is capable of handling the largest of horses. This large horse cremation machine is suitable for mass cremation, larger pets and equine. The TB-AB is a low capacity incinerator which burns up to <50kg per hour (Higher burn rates also available please ask). The machine is equipped as standard with an easy to use touch screen PLC controller, allowing for full configuration of machine settings should you wish. This system incorporates, high-low burn cycles and a data logging facility to monitor the machine’s performance. Equally if the user wishes to deviate from the touch screen they can simply press the ‘Start’ button, the machines fully automatic cycle will begin. Once this cycle has started, the machine needs little if any human intervention, the operator can leave the machine unattended to completion and the subsequent cool down process safely finalises. The machine is fitted with an integrated excess air and rapid cooling system that forms two functions. The first is to aid the burning process by injecting additional combustion air to supplement the cremation process, reduce fuel and increase burn times. The second is to safely and rapidly cool the refractory wall after a cycle completion this increases turnaround times dramaticaly.
