Medical monitor PAX-355Smedical imagingoperating roomUHD+
Add to favorites
Compare this product
Characteristics
- Applications
- medical, operating room, medical imaging
- Resolution
- 3840 × 2160, UHD+
- Display size
- 55"
- Configuration
- wall-mounted
- Options
- high-brightness, touch screen, waterproof, anti-glare
- Aspect ratio
- 16:9
- Input
- HDMI, DVI, DisplayPort, 3G-SDI, 12G-SDI
- Brightness (cd/m²)
700 cd
- Response time
8 ms
- Power consumption
301 W
- Viewing angle
178 °
- Weight
Min.: 32 kg
(70.5 lb)Max.: 36 kg
(79.4 lb)- Width
1,291 mm
(50.8 in)- Height
775 mm
(30.5 in)- Depth
75 mm
(3 in)
Description

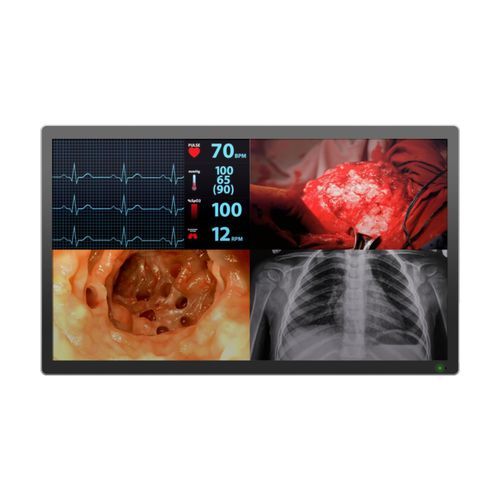

Designed for large-format visualization in the operating room, PAX-355S is a 55" 4K UHD medical display that combines flexible imaging, easier installation, and optional integrated streaming. Its modular design supports different OR setups and project requirements while delivering clear, detailed visualization across surgical workflows.
Key Highlights
Key Highlights
- 55" 4K UHD display (3840 × 2160) for large-format surgical visualization
- 32 kg design without optical bonding for easier mounting, installation, and maintenance
- Multi-picture modes including Normal, PiP, PBP, and Quad View for simultaneous visualization of multiple sources
- Optional optical bonding for clearer viewing and enhanced image performance
- Optional embedded streaming solution for integrated OR video workflows
- Flexible board options to support different project and connectivity requirements
- High-brightness display with Backlight Leveling Technology for consistent image presentation
- Variable gamma and DICOM modes for optimized clinical visualization
- True-flat design for seamless integration into surgical environments
- Optional built-in touchscreen for intuitive interaction
