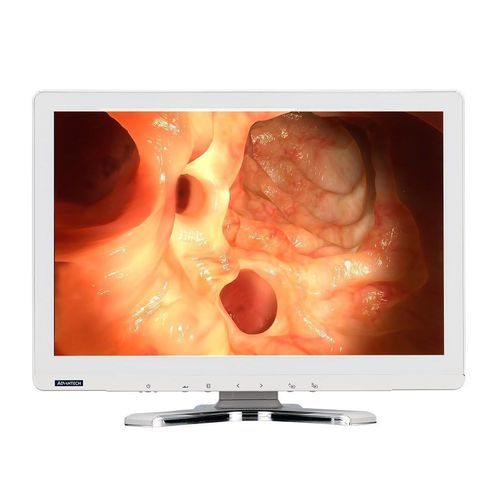

Surgical display PAX-324
1920 x 108024"LCD

surgical display
surgical display
surgical display
surgical display
surgical display
surgical display
surgical display
Add to favorites
Compare this product


Characteristics

Applications
surgical
Resolution
1920 x 1080
Display size
24"
Technology
LCD
Brightness (cd/m²)

350 cd

Response time

14 ms

Power consumption

67.2 W

Viewing angle

178 °

Width

58 cm
(22.8 in)

Height

40 cm
(15.7 in)

Depth

6.8 cm
(2.7 in)

Description

Designed to deliver medical images of optimal quality, the PAX-324 monitor supports a Full HD resolution of 1920x1200 @ 60 Hz. Equipped with DICOM Part 14 GSDF compliance 14-bit LUT processing grayscale, hardware calibration support, and automatic charge input detection, the PAX-324 surgical monitor ensures precise representation of grayscale images. Its slim true-flat design also offers physical onscreen display keys, a splash screen and an optional touchscreen with projective capacitive control, and can be upgraded into an IP-based monitor. Product features: - Operational 0~40oC / Storage -20~60oC - Optional upgrade to an IP-based monitor with AVAS - Video enhancement features include: 14-bit LUT processing; DICOM Part 14 GSDF compliant; DICOM, clear, blue modes supported - Multi-standard video support (NTSC, PAL, SECAM) - SDI support up to 1920 x 1080 @ 60Hz - HDMI 2.0, DP 1.2, DVI, RGB support up to 1920 x 1200 @ 60 Hz - FHD resolution (1920 x 1200) - High brightness display with a high contrast ratio - 24” true-flat monitor with AR filter
