Transport stretcher trolley H-AWL 1065/E 930

recoveryelectricheight-adjustable

Product overview

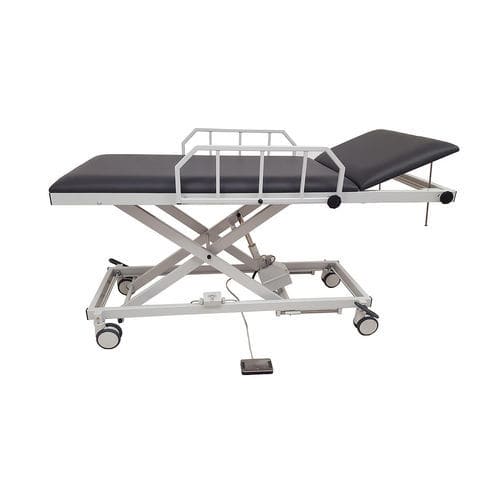

The electric height-adjustable patient transport and recovery tables provide safe and ergonomic patient transport. Height adjustment is controlled by an easy-to-use hand switch with two buttons (up and down). Adjustable pivoting side guards act as fall protection and allow patient access from both sides. Large double swivel castors facilitate driving over indoor obstacles; all four castors are interconnected by rods and can be released or centrally locked with a single step. Foot pedals at head and foot ends allow easy access to the central castor locking; coloured markings show the position (green = ready for moving, red = locked). Available in lacquered and chrome-plated upholstery frames and in upholstery widths of 650 mm and 800 mm.

Key benefits

• Ergonomic handling when repositioning patients and matching heights with couches and tables.
• Patients can easily get on and off as tables can be lowered to wheelchair seat height.
• Ease of operation as well as pushing and steering.

Features

• Available widths and article numbers: Width 650 mm — Article No.: H-AWL 1065/E 930 (lacquered) and H-AWL 2065/E 930 (chrome); Width 800 mm — Article No.: H-AWL 1080/E 930 and H-AWL 2080/E 930.
• Side guards for safer patient transport: approx. 760 x 250 mm (L x H), pivoting; can be lowered to upholstery height and secured with spring-loaded handwheels and fixing bolts. Take into account complete table widths including side guards: 795 mm (650 mm table) and 975 mm (800 mm table).
• Gusset plates in the frame corners increase stability and robustness.
• Wide base frame ensures high stability.
• Upholstery frames made of blank steel: lacquered or chrome-plated (depending on article number).
• Upholstery thickness for both tabletop sections (headrest and main surface): 64 mm.
• Height adjustment range: 500 - 930 mm by electric motor, controlled via hand switch (optional foot switch at no extra charge). Adjustment system equipped with a key lock. Drive specifications: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, v = 11 mm/s, 10,000 N.
• Continuously adjustable headrest up to +40° secured with clamping rod locking mechanism (alternative headrest adjustment via gas pressure spring available as option).
• Double castors Ø 125 mm with central locking system; four swivel castors connected by rods, foot pedals located diagonally at head and foot ends for locking or release.

Technical data (table summary)
Table width 650 mm — Article No.: H-AWL 1065/E 930 (lacquered) and H-AWL 2065/E 930 (chrome)
Length (headrest / main section): 1,900 mm — 500 / 1,400 mm
Width: 650 mm (795 mm with side guards)
Side guards: 760 x 250 mm (L x H), pivoting
Height adjustment: 500 - 930 mm (electric motor)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm
Headrest adjustment: +40° (clamping rods)
Load capacity: 200 kg
Castors: Ø 125 mm, double castors with central locking system

Table width 800 mm — Article No.: H-AWL 1080/E 930 (lacquered) and H-AWL 2080/E 930 (chrome)
Length (headrest / main section): 1,900 mm — 500 / 1,400 mm
Width: 800 mm (975 mm with side guards)
Side guards: 760 x 250 mm (L x H), pivoting
Height adjustment: 500 - 930 mm (electric motor)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm
Headrest adjustment: +40° (clamping rods)
Load capacity: 200 kg
Castors: Ø 125 mm, double castors with central locking system

Standard configuration includes

• Central locking system with double swivel castors Ø 125 mm, interconnected by rods; foot pedals arranged diagonally at head and foot ends with coloured markings (green = ready for moving, red = locked).
• Two pivoting side guards (800 x 250 mm stated in standard configuration list; typical pivoting side guards on product are approx. 760 x 250 mm) adjustable and fixed with spring-loaded handwheels.

Accessories & additional options
Examples of accessories and options: infusion holder (INF-1720/VA), alternative headrest adjustment via gas pressure spring, paper roll holder for both widths (P-2065/A / P-2080/A), shock position / Trendelenburg adjustment via gas spring (SL-AWL), surgical standard rails, push handles, all-around edge/impact protection, wall deflector rings, patient belts, positioning aids, face cutout and padded insert.

Caractéristiques / spécifications techniques

• Series: H-AWL series (multiple article numbers / widths / frame finishes).
• Upholstery widths: 650 mm and 800 mm (complete widths with side guards: 795 mm and 975 mm respectively).
• Height adjustment (electric): 500–930 mm; optional variant heights available (e.g. 600–1,030 mm as product variant).
• Electric drive spec: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed approx. 11 mm/s, thrust 10,000 N.
• Upholstery: 2 sections, thickness 64 mm; headrest adjustable up to +40° (clamping rods) or optional gas-spring release version.
• Frame finishes: lacquered or chrome-plated upholstery frames; height adjustment mechanism and base frame available in lacquered finish; standard lacquer frame colours include light grey (RAL 7035), white aluminium (RAL 9006) and pure white (RAL 9010).
• Side guards: approx. 760 x 250 mm pivoting, secured by spring-loaded handwheels.
• Castors: Ø 125 mm double castors with central locking and interconnection rods; foot pedals for locking/release located at head and foot ends.
• Load capacity: 200 kg.
