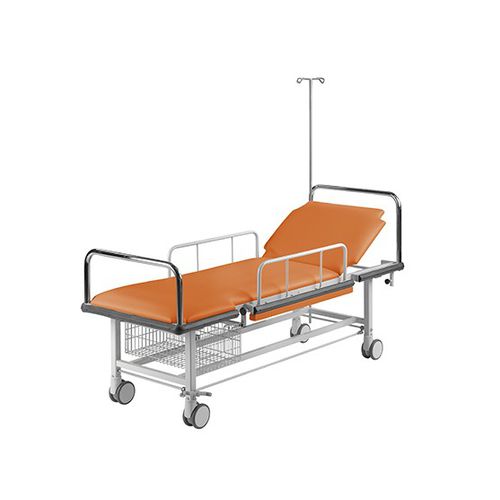

The patient transport table/recovery table PTL-1070/LRZ stands out not only by its functionality but also by its look and user-friendly design. Two chrome-plated push bars ensure excellent manoeuvrability during transport.
All four central locking double castors (Ø 125 mm) are connected by rods. A foot pedal to secure/release is located at the head and foot ends of the table.
All walls and doors as well as the patient transport table itself are protected by the black rubber guard mounted all around the tabletop frame and side guards.
Patient transport table with all-around rubber guard
The headrest, main table surface and padded areas on the side guards are upholstered with synthetic leather. The upholstery thickness for the headrest and main table surface is 64 mm.
The side guards (dimensions approx. 760 x 230 mm, LxH) can be adjusted up or down with a simple rotation mechanism and locked in place with a sliding bolt. When both side guards and down, the overall width of the upholstered area is increased from approx. 600 mm to approx. 700 mm.
The headrest is continuously adjustable by gas pressure spring (300N) up to +30°. The release button is located at the front end, directly underneath the headrest.
Built-in brackets on either side of the head section for the optional infusion pole.
The following accessories are available for the patient transport table PTL-1070/LRZ.
Wire storage basket – Article No. Korb - Dimensions approx. 550 x 290 x 190 mm (WxDxH), plastic-coated in RAL7035 light grey. It can be pulled out from either side. Please note that it is not retrofittable.
