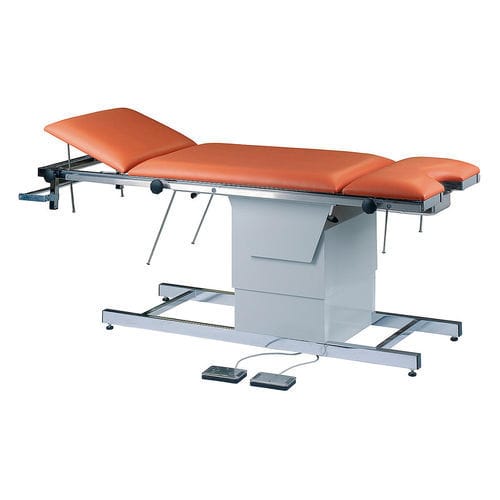

Minor surgery examination table UNI-MED

proctologygynecologyelectric

Overview
The all-rounder! Multi-function examination tables with electric height and tilt adjustment and extensive accessories. The multi-function examination tables AGA-UNI-MED (Article No.: A-2065/EE) and AGA-DUO-LIFTO-MED (Article No.: H-U 2065/3EE) are equipped with two electric motors that control and adjust the height and inclination of the upholstered frame. The three upholstery segments enable optimum patient positioning thanks to their wide range of adjustment options. The 1,720 mm long standard rails on the side of the chrome-plated upholstered frame allow fitting of delivered accessories as well as other equipment components. Suitable for general medical practices, surgical, gynaecology, proctology and rectoscopy practices as well as hospitals and medical facilities.

Features

• Height and tilt adjustments controlled by electric motor; precision double square guides in the AGA-UNI-MED height adjustment mechanism.
• Maintenance-free, extremely quiet electric drives in the AGA-UNI-MED controlled by foot switches (alternatively by hand switches at no extra charge); adjustment systems equipped with key locks. Motor connection values (each): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v = 11 mm/s, 10,000 N.
• AGA-DUO-LIFTO-MED uses two lifting columns (low-voltage electric drives) of anodized light metal, controlled by a transformer and operated by a six-button handset allowing simultaneous height and tilt adjustment. Motor connection values (each): 230V, 50/60 Hz, 6.0A, 240W, IPX6, v = 16 mm/s, 2 x 1,000 N.
• Adjustment of Trendelenburg and anti-Trendelenburg positions.
• Stability and robustness achieved by gusset plates in the frame corners and wide projection of the base frame with levelling feet.
• Upholstered frame is chrome-plated; base frame of AGA-UNI-MED is chrome-plated (sheet metal panelling lacquered), AGA-DUO-LIFTO-MED base frame is lacquered blank steel.
• Pair of standard rails (stainless steel) 25 x 10 mm, length 1,720 mm, attached to the side of the upholstered frame to hold accessory components.
• Three upholstery segments (head, middle, foot) with 64 mm thickness each; continuous adjustment of head, middle and foot sections, locked by clamping handles with clamping rod mechanisms.
• Cutouts in the upholstery and upholstery frame at the foot end to accommodate the stainless steel tray included in delivery (300 x 200 x 65 mm).

Standard version includes

• Pair of standard rails attached to the side of the upholstered frame.
• Pair of leg holders with plastic shells.
• Pair of fastening clamps.
• Cutouts in the foot section and upholstery frame.
• Stainless steel tray with holder.
• Paper roll holder attached to the head end of the upholstered frame.
• Floor frame with levelling feet.
• Foot or hand switches (for drive control).

Technical details (table)
Article number: A-2065/EE (AGA-UNI-MED) | H-U 2065/3EE (AGA-DUO-LIFTO-MED)
Frame: Chrome
Length (Head/Back/Foot section): 1,900 mm | 500 / 1,050 / 350 mm
Widths: 650 mm (710 mm with standard rails)
Height adjustments: AGA-UNI-MED 650 - 850 mm (electric motor) | AGA-DUO-LIFTO-MED 600 - 850 mm (electric motors)
Upholstery segments: 3 sections
Upholstery thickness: 64 mm
Head section adjustment: +40° (clamping rods)
Back section adjustment: +30° (gas pressure spring)
Foot section adjustment: +30° (clamping rods)
Trendelenburg adjustment: AGA-UNI-MED 25° (electric motor) | AGA-DUO-LIFTO-MED 15° (electric motors)
Anti-Trendelenburg adjustment: AGA-UNI-MED 25° (electric motor) | AGA-DUO-LIFTO-MED 15° (electric motors)
Load capacity: AGA-UNI-MED 200 kg | AGA-DUO-LIFTO-MED 150 kg

Accessories & additional options (selection)

• A-2047 — Arm support, swivel-mounted, black PU-foam arm shell approx. 400 x 120 mm, with 2 Velcro fasteners, chrome-plated holder for standard rail.
• BHG-600 — Göpel leg rests (pair) with spherical joints, rods with two 90° bends, chrome-plated Ø 18 mm, black PU-foam shells; straps sewn from synthetic leather with Velcro closure. Requires fastening clamps for standard rails.
• BKG-600 — Göpel fastening clamps (pair) for standard rails (25 x 10 mm), chrome-plated, for leg holder rods Ø 18 mm; adjustable in height and tilt using toothed rings and clamping mechanism.
• GS-1710 / EfGS — Face cut-out in the headrest, oval approx. 205 x 105 mm; upholstery insert for closing the face opening approx. 200 x 100 mm (retrofitting not possible).
• INF-30170/BKO — Infusion holder, stainless steel, infusion rod 1,700 mm long with 4 hooks; includes fastening clamp for standard rail.
• IT-3060 — Instrument table, stainless steel, approx. 600 x 400 mm, side raised edge 15 mm, mounting rod Ø 18 mm (fastening clamps required).
• LR-75 / LR-125 — Set of castors Ø 75 mm or Ø 125 mm; four swivel castors, two completely lockable.
• LR/Z-125 — Central locking castor system, double swivel castors Ø 125 mm, linked by rods with diagonally arranged foot pedals (retrofitting not possible).
• Other accessories available: hand restraints, body belt, positioning aids, anesthesia pole, ring armrests, rectoscopy roll, side guards, shoulder/side support, side support.

Frame & upholstery colours

• Standard lacquer frame colours: light grey (RAL 7035), white aluminium (RAL 9006), pure white (RAL 9010). High-gloss, disinfectant resistant finish.
• Upholstery covers: synthetic leather (tear resistant, durable, disinfectant resistant). Electrically conductive synthetic leather available at additional cost.

Caractéristiques / spécifications techniques

• Models: AGA-UNI-MED (A-2065/EE) and AGA-DUO-LIFTO-MED (H-U 2065/3EE).
• Overall length: 1,900 mm (head/back/foot segments 500 / 1,050 / 350 mm).
• Upholstery width: 650 mm (710 mm with standard rails).
• Height adjustment range: AGA-UNI-MED 650–850 mm; AGA-DUO-LIFTO-MED 600–850 mm.
• Upholstery thickness: 64 mm (standard); variant example with 85 mm upholstery also documented for certain variants.
• Load capacity: 200 kg (AGA-UNI-MED); 150 kg (AGA-DUO-LIFTO-MED).
• Trendelenburg / anti-Trendelenburg: up to 25° (AGA-UNI-MED) / up to 15° (AGA-DUO-LIFTO-MED).
• Drive specs: AGA-UNI-MED motors each 230V, 50/60Hz, 3.7A, 850W, IPX4, speed 11 mm/s, thrust 10,000 N; AGA-DUO-LIFTO-MED motors each 230V, 50/60Hz, 6.0A, 240W, IPX6, speed 16 mm/s, thrust 1,000 N (x2).
• Standard rails: stainless steel 25 x 10 mm, length 1,720 mm, attached to side of upholstered frame for accessories.
