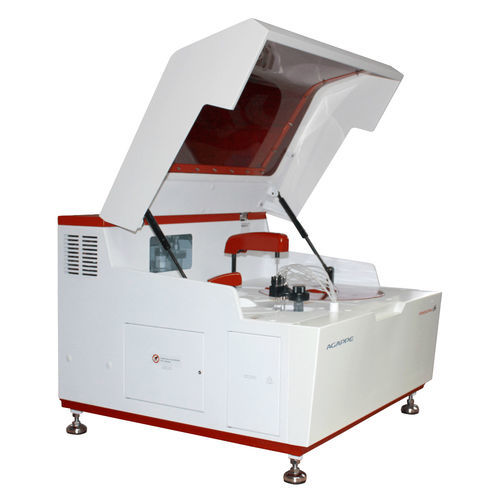

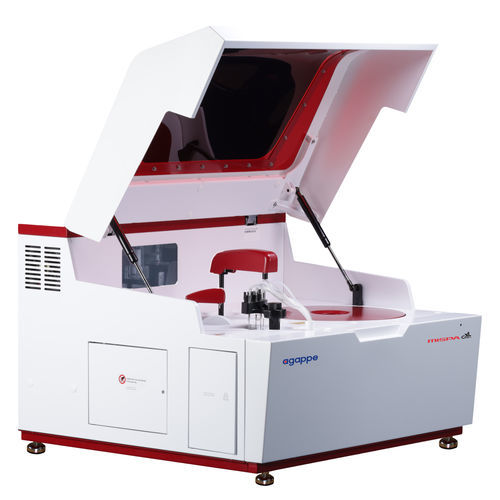

Automatic biochemistry analyzer Mispa CXL Pro
compactbenchtoprandom access

Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access
Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access
Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access - image - 2
Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access - image - 3
Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access - image - 4
Automatic biochemistry analyzer - Mispa CXL Pro - Agappe Diagnostics Switzerland GmbH - compact / benchtop / random access - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Operation
automatic
Configuration
benchtop, compact
Technology
random access
Marker tested
glucose, calcium, magnesium, for HDL, for amylase, bilirubin, creatinine, alkaline phosphatase, iron, triglycerides, IgM, albumin, for antigen E, for SGPT, total proteins, lipase, cholesterol, complement C3, complement C4, cystatin C, ferritin, IgA, prealbumin, IgG, for adenosine deaminase, for apolipoproteins, for LDL, ASO, uric acid
Other measured parameters
with immunoturbidimetric analysis
Options
with LIS connectivity
Throughput

240 p/h

Sample volume

Max.: 0.035 ml
(0.001183 US fl oz)

Min.: 0.002 ml
(0.000068 US fl oz)

Number of sample positions

80 unit

Reagent volume

Max.: 0.3 ml
(0.01 US fl oz)

Min.: 0.01 ml
(0 US fl oz)

Number of reagent positions

80 unit

Weight

100 kg
(220.5 lb)

Length

744 mm
(29.3 in)

Width

703 mm
(27.7 in)

Height

530 mm
(20.9 in)

Description

ULTIMATE AUTOMATION, PERFORMANCE DRIVEN Mispa CXL Pro is a compact, fully automated random access clinical chemistry analyzer with photometric throughput of 240 Clinical chemistry tests per hour. Mispa CXL Pro has proven HCFG (Holographic Concave Flat Field Grating) rear spectrophotometry which reduces ambient light interferences, and photo-spot technology to reach super micro analysis. Mispa CXL Pro has an excellent on-board washing and cleaning system adopting 7 stops 11 steps, ensures minimum carryover and precise result delivery. Mispa CXL Pro is the best in the class with grating, mixing, washing and user-friendly classic features. Description Fully Automatic Biochemistry Analyzer - Mispa CXL Pro Mispa CXL Pro is a fully automated, discrete, random access clinical Chemistry analyzer. Mispa CXL Pro offers 240 tests per hour. Mispa CXL Pro has a Holographic Concave Flat Field Grating (HCFG) rear spectrophotometry system for best reliability and maximum accuracy. CXL Pro comes with Special Probes, having an internal water pressure wash and external waterfall wash, eliminating carryover. Mispa CXL Pro is a modern analyzer, able to perform endpoint, fixed time, kinetic, single & dual reagents chemistry mono & bi chromatic, linear & non-linear multipoint calibration. Mispa CXL Pro is an all-in-one solution for clinical chemistry analysis. Features Triple speed mixing - (ensure proper mixing for special parameters as well) Mixing is one of the many elements that affect how accurate the results are. As different types of chemistry demand different types of mixing; there CXL Pro stands alone with a triple-speed mixing mechanism.
