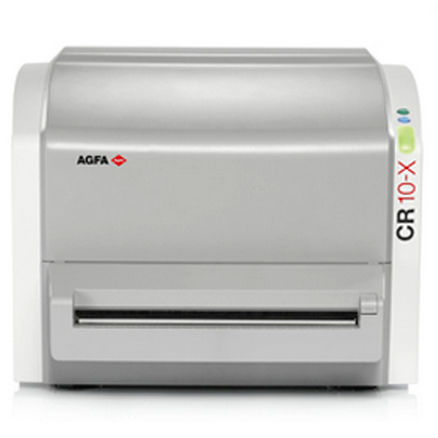

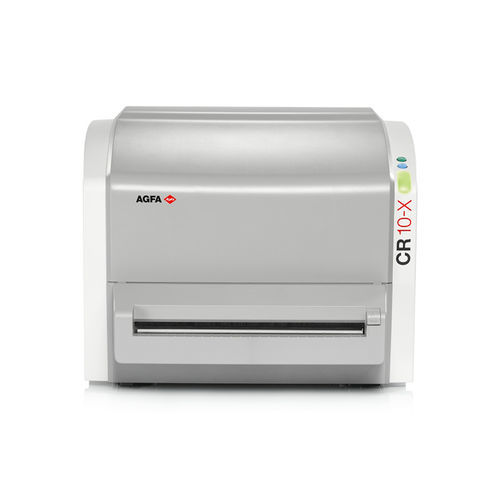

Veterinary CR scanner CR 10-X

Overview
CR 10‑X provides an entry to digital computed radiography, streamlining workflow so staff can focus on patient care. It is a compact tabletop CR digitizer designed for veterinary environments with low to moderate throughput.

Key benefits

• No compromise on image quality: MUSICA® automatically analyses each image and optimises processing parameters independent of animal size and dose variations.
• Suitable for space‑restricted environments: small tabletop footprint (W58 × D70 × H47.1 cm) and adaptable for mobile installations in cars, vans or trucks with additional fitments.
• Low total cost of ownership: modular, component‑based design for fast installation; LED erasure unit lowers power consumption so standard electrical outlets are sufficient.
• Easy and fast maintenance: streamlined design with few moving parts; horizontal cassette insertion reduces dust ingress and increases reliability in demanding settings.
• Portable: lightweight (approx. 31 kg) and manageable by a single person for mobile use.
• Improved workflow integration: supports digital workflows and integration to maximise utilisation and return on investment.

MUSICA® image processing
MUSICA® provides automated calibration and image processing to deliver consistently optimised radiographs with minimal user intervention. Calibration and processing are fully automated to ensure reproducible results across different animal sizes and exposure levels.

Applications
Designed for veterinary imaging (small animals) and for clinics or institutions transitioning from analog to digital, including rural hospitals, private practices and mobile units.

Technical characteristics / specifications

• Model: CR 10‑X
• Product name on page: CR 10‑X Veterinary
• Intended application: Veterinary computed radiography (small animals); entry‑level CR for low‑volume clinical environments
• Footprint (tabletop): W58 × D70 × H47.1 cm
• Weight: approx. 31 kg
• Cassette insertion: horizontal cassette insertion (reduces dust ingress)
• Erasure unit: LED technology (low power consumption)
• Image processing: MUSICA® automatic image processing (automated calibration and optimisation)
• Design: modular, component‑based design for fast installation and low maintenance
• Mobility: can be integrated as a mobile unit into vehicles with additional fitments
