Digital veterinary X-ray system MUSICA™

portable

Overview
The complete MUSICA™ DR mobile solution designed for equine veterinarians. Compact and portable, it provides wireless image transmission, fast DR acquisition and a field-ready workflow to speed up exams while preserving image consistency.

Included components

• Laptop with dedicated workstation software and MUSICA™ image processing tuned for large animals
• Wireless compact detector XD 10 or XD+ 10

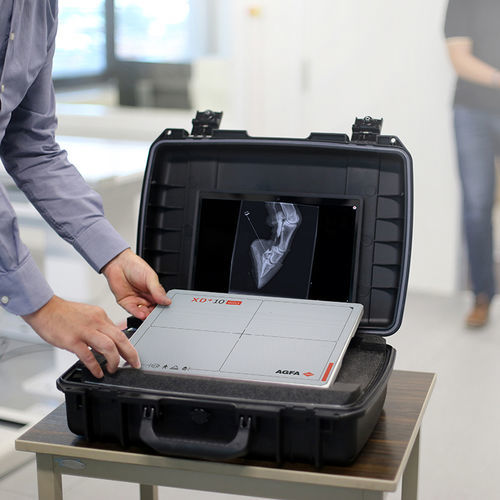

• Rugged carrying case in suitcase format for field transport

Key benefits

• Mobile, wireless DR solution adapted to equine imaging
• Efficient, fast workflow and accelerated exam times
• Consistent image processing for large-animal radiography via MUSICA™
• Easy transport and field durability
• Retrofit option to upgrade film/CR systems to DR
• Support for veterinary DICOM attributes, DICOM archiving and PACS connectivity

MUSICA™ for large animals
MUSICA™ performs exam-independent processing optimized for veterinary needs: it analyses raw images and adjusts processing parameters automatically to ensure consistent contrast and detail in large-animal radiography.

Dura-line detectors and options
Dura-line detectors are wireless, compact and designed for easy transport and use across multiple X‑ray systems. Options include:

• XF+: glass-free TFT, lowest weight, drop-tested to 1.5 m, 99 μm pitch, high DQE
• XD+: glass-based TFT, balance of quality and cost, drop-tested to 1 m, 140 μm pitch (35×43 / 43×43), high DQE
• XD: glass-based TFT, cost-effective option, drop-tested to 1 m, 140 μm pitch (35×43 / 43×43)

Upgrade and workflow
The Retrofit Solution enables conversion of film or CR systems to DR with minimal installation effort and investment, providing rapid access to DR workflow and image processing benefits.

Technical specifications

• Product type: Mobile veterinary DR suitcase solution for equine use
• Image processing: MUSICA™ tuned for large animals (automatic, exam-independent)
• Included detector: Wireless XD 10 or XD+ 10 compact detector
• Included computing: Laptop with dedicated workstation software
• Portability: Rugged suitcase-format carrying case for field use
• Connectivity: Wireless image transmission; supports veterinary DICOM attributes, DICOM archiving and PACS
• Performance: Fast DR acquisition to accelerate exams
• Upgrade option: Retrofit solution to convert film/CR to DR
• Dura-line options: XF+ (glass-free, 99 μm), XD+ (glass-based, 140 μm), XD (glass-based, 140 μm)
• Drop-test: XF+ 1.5 m; XD / XD+ 1 m
