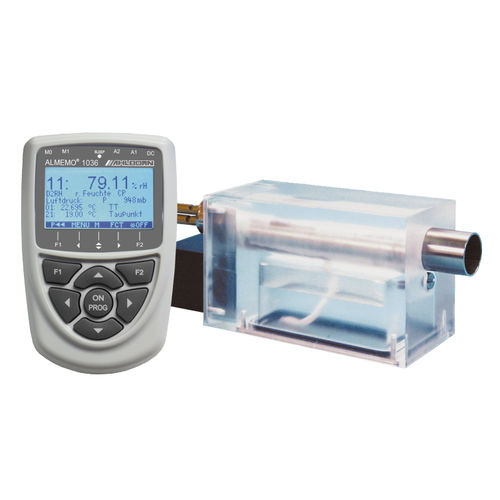

Humidity tester ALMEMO® 1036-2

pressuretemperaturecalibration

Humidity measurement with very high resolution, precision, and linearity, using Pt100 psychrometer Suitable as reference device in calibration laboratories and quality assurance procedures Very high level of accuracy using the Pt100 psychrometer thanks to multi-point adjustment of the two temperature sensors Pt100 psychrometer optimized for measuring operations involving high humidity levels performed over long periods new: Automatic atmospheric pressure compensation is provided for pressure-dependent humidity variables by means of a digital atmospheric pressure sensor integrated in the ALMEMO® device. new: Humidity calculation on the basis of formulae as per Dr. Sonntag and the enhancement factor as per W. Bögel (correction factor fw(t,p) for real mixed gas systems). This substantially widens the measuring range and improves the accuracy of humidity variable calculations. Resolution : Temperature Pt100 0.001 K, Relative humidity 0.01%, Dew point 0.01 K The humidity variables are calculated from the three primary measuring channels (real measurable variables). Dry temperature (°C), humid temperature (°C), atmospheric pressure (mbar) Three humidity variables displayed simultaneously, freely selectable : Relative humidity (%), dew point (°C), mixture (g/kg), new: Absolute humidity (g/m³), vapor pressure (mbar), enthalpy (kJ/kg) Two electrically isolated measuring inputs for Pt100 sensors High-resolution A/D converter, delta-sigma, 24-bit, 1.25 mops (measuring operations per second) Two output sockets for digital interface, ALMEMO® memory connector Compact, modern, ergonomic design Graphics display, illuminated with white light
