for Pt100 Thermocouples Current and voltage Frequency
Technical data and functions

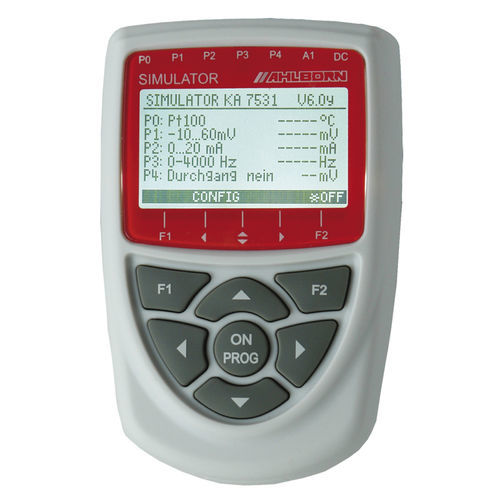

Universal manual simulator for simulating temperature sensors and process variables when testing measuring instruments, regulators, and other equipment
Pt100 simulation with 5 fixed resistors in 4-conductor technology
Voltage and thermocouples simulation with 15-bit D/A converter
Current simulation with 15-bit D/A converter
Frequency and pulse generator with quartz-crystal oscillator
Continuity check with settable threshold
All signals are available at the same time.
Signals can be set either manually or automatically, in step or ramp form.
All signals and all the programming can be shown on the illuminated graphics display.
Connection of peripherals via ALMEMO® clamp connectors, cable with anti-kink protective sleeve and strain relief
Power supply via battery or mains unit
Modern, compact housing - also suitable for DIN top-hat rail mounting
Option of PC-controlled operation via all ALMEMO® data cables.
