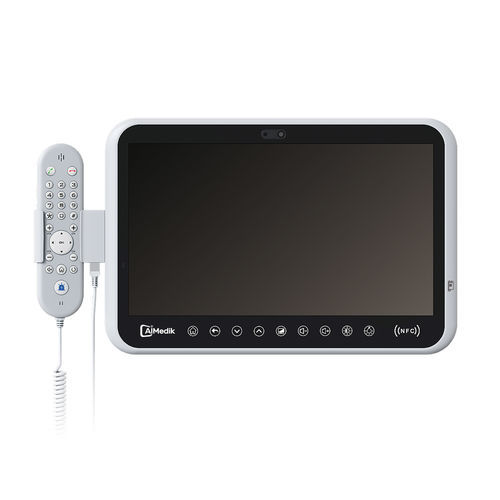

Waterproof patient infotainment terminal MT15

antibacterialwith card readertouch screen

Description
The MT15 bedside infotainment terminal is designed for hospital and clinical environments. It integrates a computer, television, telephone and nurse-call interface into a single touch-screen unit to provide patients with entertainment, communication, self-service and bedside clinical management in real time.

Key features

• 15.6" 1920 x 1080 IPS LCD with 10-point capacitive multi-touch and anti-bacterial/antiviral coating
• Touch supports glove operation and alcohol cleaning (medical rubber, latex, PVC, cotton, wet hands)
• IP65 front panel and anti-bacterial housing for easy disinfection
• High-performance Qualcomm processor (ARM KryoTM260, Octa-core 64-bit); Android 13; 4GB RAM + 64GB Flash (8GB + 128GB optional)
• Built-in 16 MP CMOS front camera with reading light and slideable privacy cover
• Optional handset for service call, remote control and physical keys
• Wireless: Wi‑Fi 802.11 a/b/g/n/ac (2.4/5GHz), Bluetooth 5.0; optional 4G module; optional RFID/NFC
• I/O: COM, earphone, USB HOST, USB-C, Micro SD, Nano SIM, RJ45 (HDMI in, POE+ optional), RS232, internal microphone
• Compliant with IEC 60601-1, EN 60601-1, ISO 22196, CE, FCC

Functionality highlights

• Glove touch: Supports medical staff operation with a wide range of gloves or wet hands without removing gloves.
• Hygiene & cleaning: IP65 front and antibacterial housing allow routine disinfection and reduce contamination risk.
• Teleconsultation: 16MP camera enables live consultations and remote patient monitoring; slideable cover preserves privacy.
• Screen projection: Wireless screen casting and HDMI input allow content to be shown on larger displays.

Connectivity & ports

• Wi‑Fi: IEEE 802.11 a/b/g/n/ac (2.4/5 GHz); Bluetooth 5.0; optional 3G/4G module
• RFID/NFC reader (optional): combo smart card reader & Mifare
• USB: USB HOST 2.0 x2, USB‑C x1; Micro SD slot; Nano SIM slot
• Network & video: RJ45 100M (POE+ 25W optional); HDMI In; RS232; COM
• Audio & mic: Earphone jack x2; handset jack; internal microphone; 4Ω/3W speaker

Technical specifications

• SYSTEM: Qualcomm ARM KryoTM260 Octa‑core 64bit; Adreno GPU; Android 13; RAM 4GB (8GB opt.); ROM 64GB UFS (128GB opt.)
• DISPLAY: 15.6" IPS, 1920 x 1080, 250 cd/m², 800:1 contrast; 10‑point capacitive touch
• CAMERA & AUDIO: 16 MP front camera with reading light and slide cover; speaker 4Ω/3W x1; internal mic
• POWER & ENVIRONMENT: DC In 9–36V; Power ≤18W; Operating temp 0°C to +50°C; Storage -20°C to +60°C
• MECHANICAL: Dimensions 399.7 x 268.3 x 39 mm; Weight 1.8 kg (without handset), 2.3 kg (with handset)

Accessories & compliance

• Standard: Power adaptor
• Optional: Handset, 4G module, RFID/NFC, POE+ 25W
• Certifications: IEC 60601-1, EN 60601-1, CE, FCC, ISO 22196
