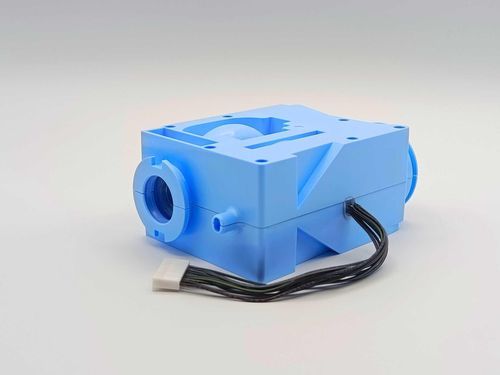

Neonatal ventilator centrifugal blower MFA0295

emergencymedicalhome care

Overview
The MFA0295 BlueBox Blower integrates patented AIRFAN technology within a soundproofed BlueBox casing that enables oxygen management before the turbine. This architecture delivers homogeneous air–oxygen mixing and stable performance across a wide operating range. Intended for hospital, transport and homecare respiratory support, the MFA0295 is fully O2 compatible and engineered for continuous operation to provide reliable airflow for ventilators and other respiratory devices.

Key Performance Benefits

• Pressure range up to 77 hPa at 80 l/mn
• Air–oxygen blending through the turbine for a homogeneous gas mixture
• Fully O2 compatible
• Safe operation at very low flow rate (< 2 l/mn)
• High dynamic response, tracking patient breathing up to 200 bpm
• Soundproofed BlueBox casing for improved patient comfort
• Designed for continuous 24/7 operation and reliable long-term use

Technical Highlights

• Acceleration (rise time): < 84 ms @ 10A max - from 5 to 60 hPa @ 30 l/mn
• Noise level: < 41 dBa @ 50 hPa - measured at 1 m from air inlet
• Power consumption: 10.5 W @ 30 hPa @ 30 l/mn
• Lifetime (L10): > 25 000 hours (standard operating conditions)

Option(s)

• Custom label: customised label with customer reference
• Silicone ring for air inlet: silicone seal for improved sealing
• Wire length: 150 mm standard or customised on request
• Outlet port: male or female - ISO 5356-1

Technical Specifications

• Application: Hospital care, Emergency and Transport, Neonatal, Home care
• 100% oxygen compatibility: Yes
• Max static pressure (ΔP): 77 hPa
• Max free flow: 290 l/mn
• Rise time*: < 84 ms
• Noise level*: < 41 dBa
• Typical power consumption*: 10.5 W
• Motor cooling management: Yes - external
• Lifetime (L10)*: > 25 000 hours
• Type: BlueBox soundproofed casing
• Voltage supply: 24 VDC (nom) | 28 VDC (max)
• Pressure range (static): < 90 hPa
