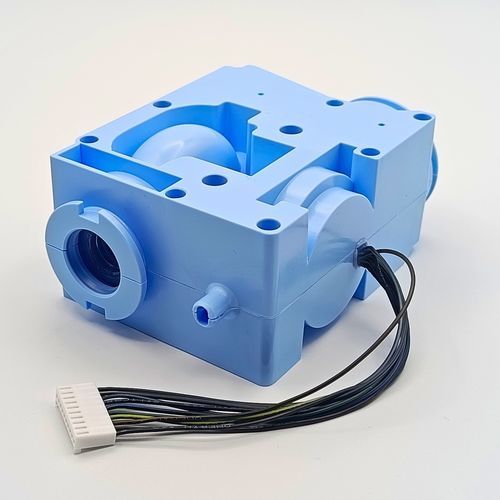

Intensive care ventilator centrifugal blower MFA0300 Turbine BlueBox

medicalneonatalhome care

Overview
The MFA0300 BlueBox blower integrates a patented AIRFAN architecture with an internal motor-cooling system, housed in a dedicated soundproof casing. The design delivers sustained performance, long service life and low acoustic emission suitable for clinical environments.

Product description
Optimised for life-support applications—including acute care, sub-acute care and homecare—the MFA0300 provides stable airflow and acoustic comfort for respiratory and ventilatory systems. It is the only BlueBox turbine with a dedicated oxygen outlet port. Customisation options cover inlet sealing, labelling, wire lengths and outlet port configurations.

Key Performance Benefits

• Pressure range up to 84 hPa at 80 L/min
• Safe operation at very low flow (< 2 L/min)
• Rapid response to patient breathing cycles, up to 200 bpm
• Fully soundproofed for low acoustic impact
• Patented motor-cooling compressor architecture for extended lifetime
• Designed for continuous 24/7 operation in patient support systems

Technical Highlights

• Acceleration (rise time): 68 ms @10A max - from 5 to 60 hPa @30 L/min
• Noise level: < 40 dBa @50 hPa (measured at 1 m from air inlet)
• Power consumption: 12.5 W @30 hPa @30 L/min
• Lifetime: > 40,000 hours under standard operating conditions

Options

• Silicone inlet sealing ring to improve sealing
• Custom label with customised reference
• Wire length: 150 mm standard or customised
• Special O2 outlet port
• Outlet port: male or female (ISO 5356-1)
