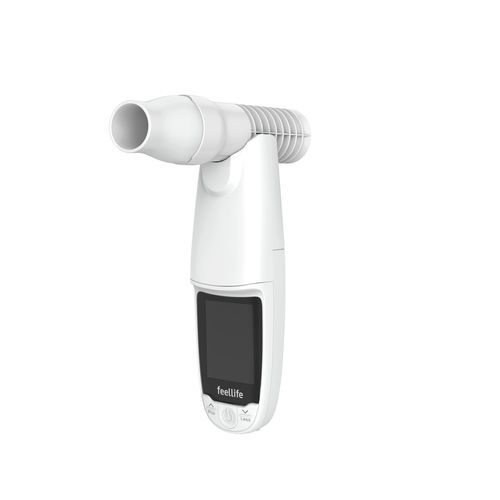

Electronic spirometer Air Smart Extra

hand-heldfor home usewith Bluetooth

Product Overview
Air Smart Extra integrates with the AirICU ecosystem to extend precise lung-function monitoring from intensive care to rehabilitation and home follow-up. Suitable for long-term recovery monitoring and routine respiratory assessment in clinical and non-clinical environments.

Product Type
Spirometer (lung function monitor)

Key Features

• Bi-directional measurement: built-in bidirectional sensor captures both inhalation and exhalation for complete and accurate flow-volume assessment.
• Connected workflow: Bluetooth data transfer and a multi-language interface enable easy integration into clinical, rehabilitation and home-monitoring workflows.
• Infection control and usability: replaceable mouthpiece and medical-grade polypropylene (PP) housing allow simple cleaning and sterilisation to reduce cross-infection risk.

Spirometry Parameters

• FVC
• FEV1
• PEF
• FEV1/FVC
• PEF25
• PEF50
• PEF75
• VC
• MVV

Operation Demonstration
Operation demonstration video available showing device use, measurement procedure and integration within clinical workflows.

Technical specifications

• Product name: Air Smart Extra
• Manufacturer / Brand: AirICU
• Device type: Spirometer (lung function monitor)
• Sensor: Bi-directional sensor (inhalation and exhalation)
• Connectivity: Bluetooth data transfer
• Language support: Multi-language interface
• Usage scenarios: Clinical, rehabilitation, home monitoring, long-term recovery follow-up
• Infection control: Replaceable mouthpiece; medical-grade PP material; designed for easy cleaning and sterilisation
• Measured parameters: FVC, FEV1, PEF, FEV1/FVC, PEF25, PEF50, PEF75, VC, MVV
