Medical isolation room IMMUNAIR®

for airborne infection isolationinfection controlplug & play

Product overview

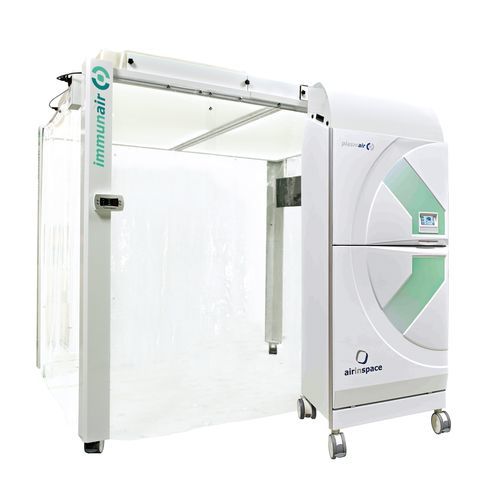

Quick to install, IMMUNAIR® fixe enables placement of immunocompromised patients in an ISO cleanroom level environment without major construction. The protection unit is supplied by one of airinspace's hospital air purifiers using the HEPA-MD® patented technology: PLASMAIR® Guardian or PLASMAIR® Sentinel, providing ISO 5 cleanroom performance under unidirectional flow. IMMUNAIR® fixe features a blowing ceiling and integrated lighting. A television is available as an option for enhanced patient comfort.

Intended uses

• Haematology
• Bone marrow and solid organ transplant units
• Onco-haematology

Key benefits and features

• Protect immunocompromised patients without invasive works or room modification
• Installation in under 1 hour in most rooms
• Creates a secure ISO 5 cleanroom environment under unidirectional flow to protect patients with aplasia or profound immunosuppression
• Integrates HEPA-MD® patented filtration via PLASMAIR® Guardian or PLASMAIR® Sentinel
• Secure, comfortable space allowing care circulation around the patient’s bed
• Transparent, removable curtains to facilitate patient monitoring
• Removable protective elements to ease daily care tasks

Studies and publications

• Air-related fungal infections in at-risk units
• Mobile air filtration devices to help care for haematology patients with aplasia

Technical characteristics / specifications

• Recommended for class 4 services in accordance with standard NF S90-351
• Volumetric flow rate: Up to 1100 m3/h with PLASMAIR® Guardian or PLASMAIR® Sentinel
• Microbiological cleanliness class: Total flora M10 and Fungal < 1 cfu / m3
• Particulate cleanliness class: ISO 5
• Dimensions - Overall (extended position): W 186 cm x L 242 cm x H 222 cm
• Dimensions - Protective area (inside the curtains): W 180 cm x L 237 cm x H 201 cm
